Change transfer box oil (ATC 13-1)

WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

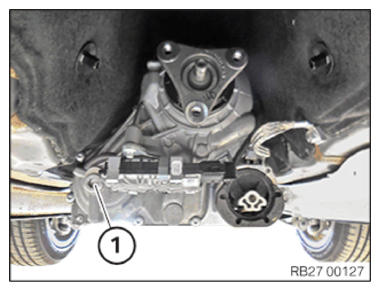

Open the oil filler plug (1).

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: TECHNICAL INFORMATION
Collect and dispose of emerging fluids. Observe country-specific waste disposal regulations.

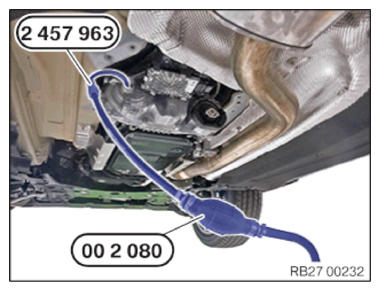

Vacuum the transmission oil from the transfer box (VTG) using special tool 0 493 337 (00 2 080) and special tool 2 457 963 .

Courtesy of BMW OF NORTH AMERICA, INC.

Fill transmission oil with the special tool 0 493 337 (00 2 080) up to the lower edge of the opening for the oil filler plug.

TECHNICAL DATA SPECIFICATION

Filling capacity of transfer box
Transfer-box oil		min. 0.7 l

Courtesy of BMW OF NORTH AMERICA, INC.

Replace the oil filler plug (1).
Parts: Oil filler plug

Tighten the oil filler plug (1).

TIGHTENING TORQUE SPECIFICATIONS

Oil filler and oil drain plugs
M22	tightening torque	60 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

Refer to INSTALLING TRANSMISSION CROSS MEMBER .
