Flush hydraulic unit
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
TECHNICAL INFORMATION
Use only BMW-approved brake fluids; see OPERATING FLUIDS .
Use only BMW-approved brake fluids; see OPERATING FLUIDS .
NOTE:
RISK OF DAMAGE
Paint damage .
Mechanical or chemical action may lead to paint damage .
Paint damage .
Mechanical or chemical action may lead to paint damage .
- Cover up working area with specified covering material only.

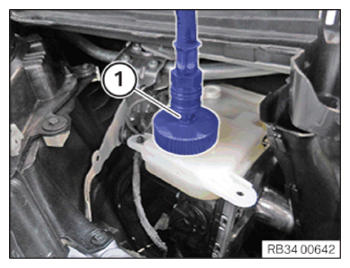

- Connect the bleeder unit (1) to the brake fluid reservoir and turn on.
Observe the operating instructions of the corresponding equipment manufacturer.
- Do not exceed the tire pressure of 2 bar .
- Work through the instructions in the service function in sequence .

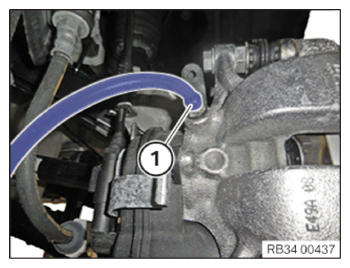

- Connect the vent hose with the collecting vessel to the bleed valve (1) on rear right brake caliper.
- Open bleed valve (1).
- The brake fluid flows out until the hydraulic unit is flushed with new brake fluid.
Flush until the new brake fluid in the collecting vessel is noticeable.
- Close bleed valve.TIGHTENING TORQUE SPECIFICATIONS
Rear bleed valve Bleed valve tightening torque 10 Nm
