Installing front brake pads
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.
- Insert and position the brake pads in the brake caliper.

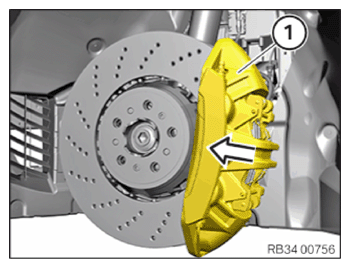

- Mount the brake caliper (1) in the arrow direction.

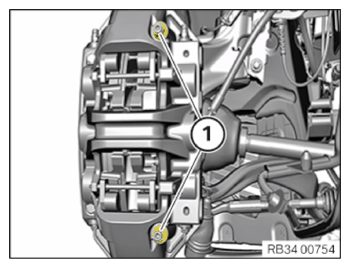

- Replace nuts (1).
Parts: Nuts
- Put on the nuts (1) and tighten.TIGHTENING TORQUE SPECIFICATIONS
Brake caliper on stud bolt of the front swivel bearing M12

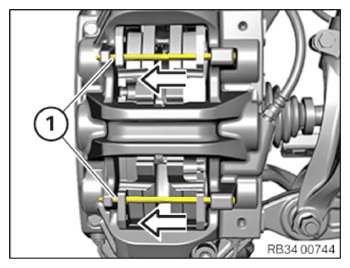

Replace nuts.Tightening torque 95 Nm - Push the locking pins (1) in the arrow direction up to the stop.
If necessary, press the brake pads against the spring force of the retaining spring.
- Insert and position the brake pads in the brake caliper.
- Mount the brake caliper (1) in the arrow direction.
- Replace nuts (1).
Parts: Nuts
- Put on the nuts (1) and tighten.TIGHTENING TORQUE SPECIFICATIONS
Brake caliper on stud bolt of the front swivel bearing M12
Replace nuts.Tightening torque 95 Nm - Push the locking pins (1) in the arrow direction up to the stop.
If necessary, press the brake pads against the spring force of the retaining spring.
