Draining the rear differential fluid

WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: TECHNICAL INFORMATION
Collect and dispose of emerging fluids. Observe country-specific waste disposal regulations.

Place oil collecting apparatus underneath.

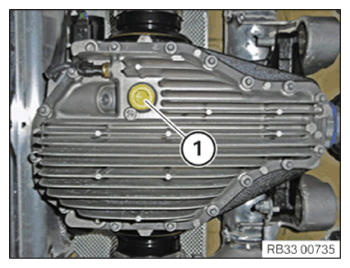

Release the oil filler plug (1).
Drain and dispose of the rear differential fluid.
Replace (1) screw plug.
Parts: Plug

Tighten the oil filler plug (1).

TIGHTENING TORQUE SPECIFICATIONS

Screw plug on final drive cover
M22 Replace screw plug with O-ring.	Tightening torque	45 Nm

Courtesy of BMW OF NORTH AMERICA, INC.
