41 00 BODY TECHNICAL DATA (M5 2018-2022, M5 Competition 2019-2022)
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
41 00 TECHNICAL DATA OVERVIEW
| Air drying time after the order | ||
| Betawipe 4800 | 2 min | |
| Filler S1 | ||
| Processing time 20°C | 90 min | |
| Processing time 30°C | 60 min | |
| Curing time 60°C | 60 min | |
| Storage | 15°C... 25°C | |
| Shelf life (observe expiration date on the cartridge) | 12 Months | |

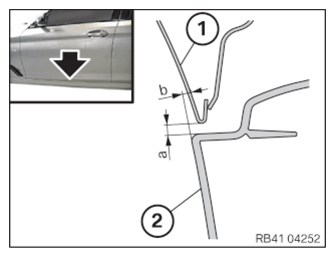

| Gap dimension front door to door sill trim panel | ||
| 1 front door; 2 door sill trim panel | a | 3.8 +1.2-1.2 mm |
| b | 3.3 +1.2-1.2 mm | |

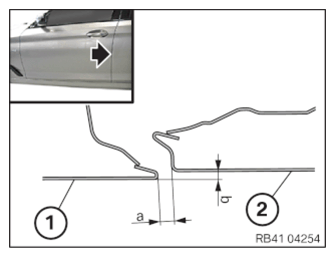

| Gap dimension front door to rear door | ||
| 1 front door; 2 rear door | a | 4.2 +0.8-0.8 mm |
| b | 0.5 +0.8-0.8 mm | |

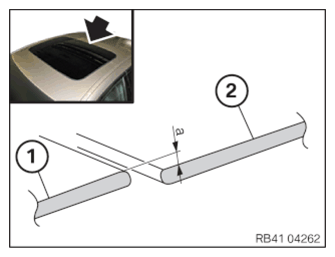

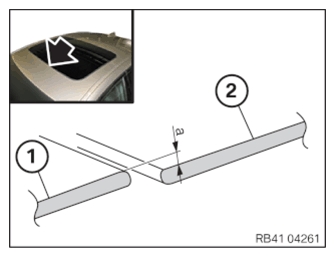

| Gap dimension glass slide/tilt sunroof panel to roof outer skin | ||
| 1 glass slide/tilt sunroof panel; 2 roof outer skin | a | 0.6 +0.75-0.75 mm |

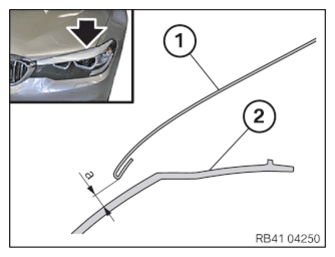

| Gap dimension hood to headlight | ||
| 1 hood; 2 headlight | a | 5.8 +1.8-1.8 mm |

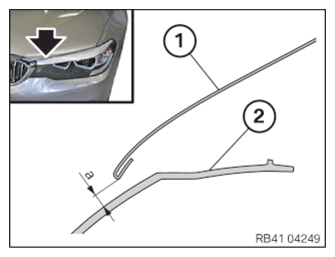

| Gap dimension hood to headlight | ||
| 1 hood; 2 headlight | a | 7.4 +1.8-1.8 mm |

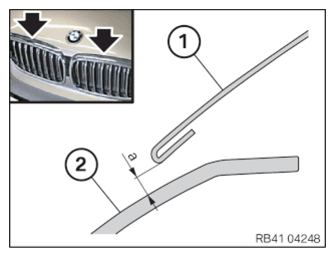

| Gap dimension hood to ornamental grille surround | ||
| 1 hood; 2 ornamental grille surround | a | 4.3 +1-1 mm |

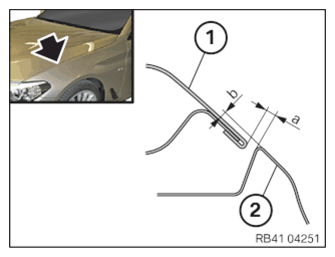

| Gap dimension hood to side panel | ||
| 1 hood; 2 side panel | a | 3.3 +1-1 mm |
| b | 0.9 +1.6-1.6 mm | |

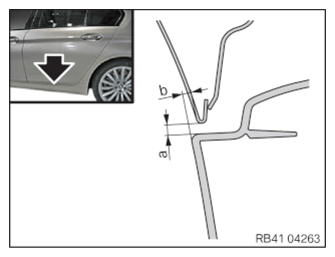

| Gap dimension rear door to door sill trim panel | ||
| 1 front door; 2 door sill trim panel | a | 3.8 +1.2-1.2 mm |
| b | 3.1 +1.2-1.2 mm | |

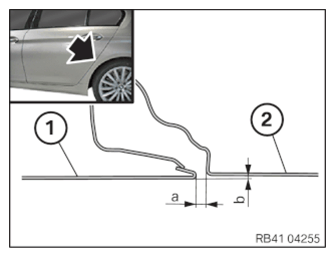

| Gap dimension rear door to rear quarter panel | ||
| 1 rear door; 2 rear quarter panel | a | 3.8 +1-1 mm |
| b | 0 +1.3-0.3 mm | |
| Gap dimension rear quarter panel to trunk lid | ||
| 1 rear quarter panel; 2 trunk lid | a | 3.5 +1-1 mm |
| b | 0.3 +1-1 mm | |

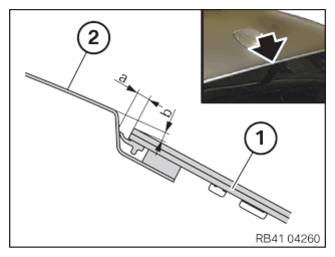

| Gap dimension rear window to roof outer skin | ||
| 1 rear window; 2 roof outer skin | a | 4.0 +1.3-1.3 mm |
| b | 52.6 +1.3-1.3 mm | |
| Gap dimension roof outer skin to glass slide/tilt sunroof panel | ||
| 1 roof outer skin; 2 glass slide/tilt sunroof panel | a | 0.6 +0.75-0.75 mm |

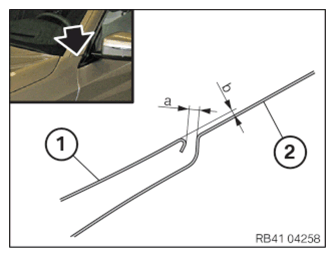

| Gap dimension side panel to A-pillar | ||
| 1 side panel; 2 A-pillar | a | 2.6 +1.1-1.1 mm |
| b | 0 +1-1 mm | |

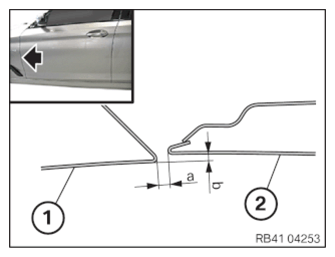

| Gap dimension side panel to front door | ||
| 1 Side panel; 2 front door | a | 3.8 +0.8-0.8 mm |
| b | 0.5 +0.8-0.8 mm | |
| Gap dimension trunk lid to rear bumper panel | ||
| 1 trunk lid; 2 rear bumper panel | a | 5.1 +1.2-1.2 mm |

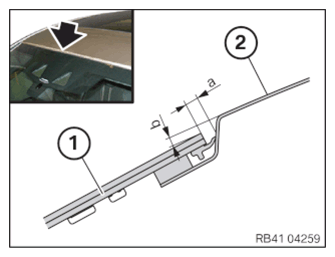

| Gap dimension windshield to roof outer skin | ||
| 1 windshield; 2 roof outer skin | a | 4.9 +1-1 mm |
| b | 3.1 +1.5-1 mm | |
