Body Gap Dimensions REH-Hin-P-4100-SPALT_F90 - V.1

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

Symmetry of the gaps between left and right sides of the vehicle has top priority. In terms of door gaps the maximum deviation between the front and rear door gap must be 1.0 mm. No gap dimension are specified for components which cannot be adjusted.

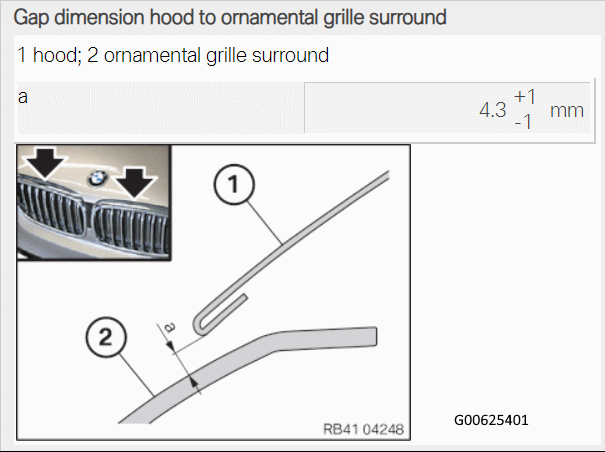

Fig 1: Hood And Grille Body Gap Dimensions And Measurement Points

G00625401

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 2: Hood And Inner Headlamp Body Gap Dimensions And Measurement Points

G00625402

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 3: Hood And Outer Headlamp Body Gap Dimensions And Measurement Points

G00625403

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 4: Hood And Front Fender Body Gap Dimensions And Measurement Points

G00625404

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 5: Front Pillar And Front Fender Body Gap Dimensions And Measurement Points

G00625405

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 6: Roof And Windshield Body Gap Dimensions And Measurement Points

G00625406

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 7: Front Door And Front Fender Body Gap Dimensions And Measurement Points

G00625407

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 8: Front Door And Sill Trim Panel Body Gap Dimensions And Measurement Points

G00625408

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 9: Front Door And Rear Door Body Gap Dimensions And Measurement Points

G00625409

Courtesy of BMW OF NORTH AMERICA, INC.

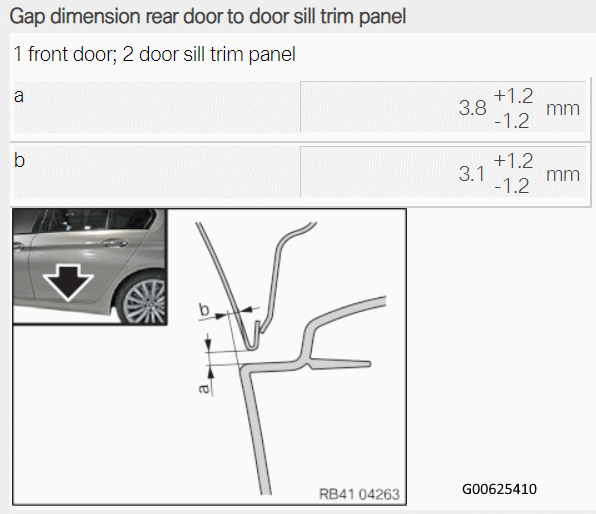

Fig 10: Rear Door And Sill Trim Panel Body Gap Dimensions And Measurement Points

G00625410

Courtesy of BMW OF NORTH AMERICA, INC.

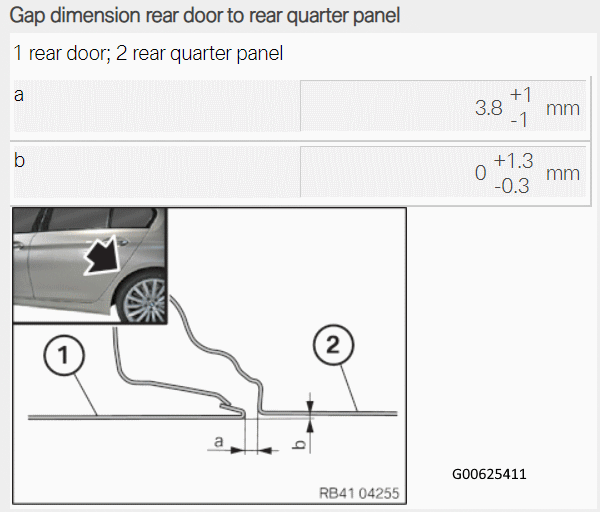

Fig 11: Rear Door And Quarter Panel Body Gap Dimensions And Measurement Points

G00625411

Courtesy of BMW OF NORTH AMERICA, INC.

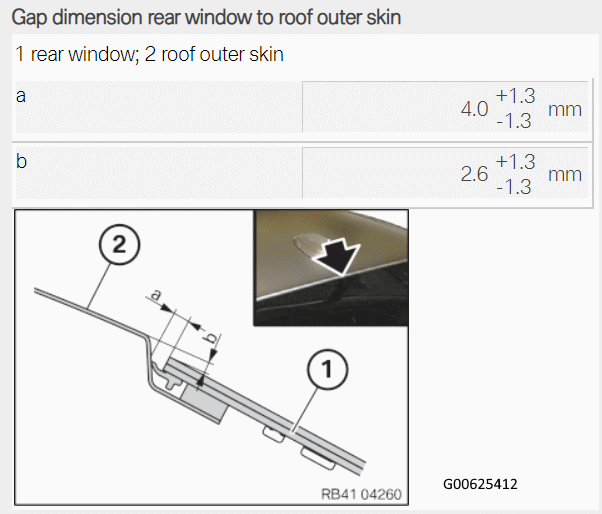

Fig 12: Roof And Back Glass Body Gap Dimensions And Measurement Points

G00625412

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 13: Quarter Panel And Trunk Lid Body Gap Dimensions And Measurement Points

G00625413

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 14: Trunk Lid And Rear Bumper Body Gap Dimensions And Measurement Points

G00625414

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 15: Front Roof And Front Moonroof Body Gap Dimensions And Measurement Points

G00625415

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 16: Rear Roof And Rear Moonroof Body Gap Dimensions And Measurement Points

G00625416

Courtesy of BMW OF NORTH AMERICA, INC.
