Installing the airbag sensor on the B-pillar
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

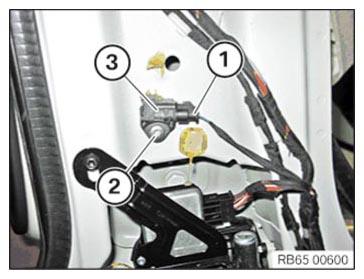

- Correctly position the airbag sensor (3) on the B-pillar.
- Tighten down screw (2)
.TIGHTENING TORQUES SPECIFICATION
Airbag sensor, B-pillar M6 Tightening torque 8.8 Nm - Connect plug (1) .
Follow-up work
- Refer to INSTALLING THE LOWER B-PILLAR TRIM PANEL .
- Refer to INSTALLING THE UPPER B-PILLAR TRIM PANEL .
- Refer to INSTALLING THE REAR DOOR SILL COVER STRIP .
- Refer to INSTALLING THE FRONT DOOR SILL COVER STRIP .
- Refer to CONNECTING BATTERY GROUND LEAD .
- Refer to ACTIVATING THE 48 V ELECTRICAL SYSTEM .
