Remove control unit
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
Preliminary work
- Refer to ADJUSTING THE FRONT PASSENGER SEAT .
- Refer to REMOVING THE TRIM .
- Refer to DEACTIVATING THE 48 V ELECTRICAL SYSTEM .
- Refer to DISCONNECTING ALL BATTERY GROUND LEADS .

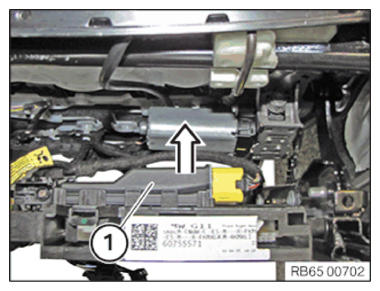

- Unclip the control unit (1) in the direction of the arrow.

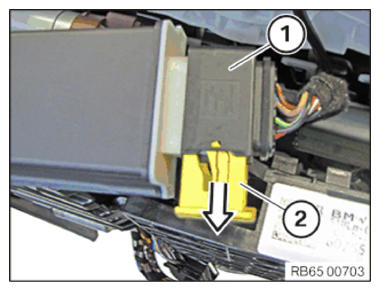

- Open the lock (2) the direction of the arrow.
- Disconnect plug connection (1).
- Remove the control unit.
