Install the control unit
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

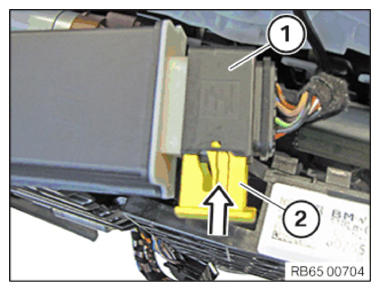

- Close plug connection (1).
- Close lock (2) arrow direction.

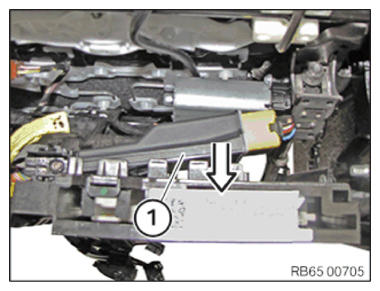

- Position the control unit (1) as shown and clip it in correctly in the direction of the arrow.
Follow-up work
- Refer to INSTALLING TRIM .
- Refer to CONNECTING BATTERY GROUND LEAD .
- Refer to ACTIVATING THE 48 V ELECTRICAL SYSTEM .
- Refer to ENCODING/PROGRAMING CONTROL UNIT(S) .
