Installing the pedestrian protection sensor

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

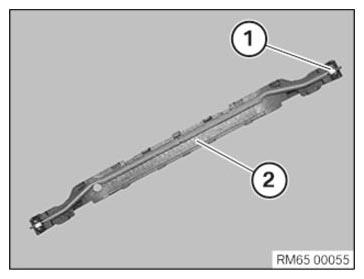

Check impact absorber (2) for damage and replace if necessary.
Carefully insert the pedestrian protection sensor (1) into the impact absorber (2).

Courtesy of BMW OF NORTH AMERICA, INC.

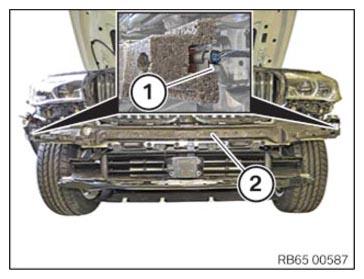

Connect connectors (1) and lock.
Attach the impact absorber (2) at the bottom and then press on the top.

G14207139

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

Refer to INSTALLING BUMPER COVER, FRONT .
Refer to INSTALLING FRONT ORNAMENTAL GRILLE .
Refer to INSTALLING FRONT SECTION OF THE FRONT WHEEL ARCH COVER (PARTIALLY REMOVED) .
Refer to CONNECTING BATTERY GROUND LEAD .
Refer to ACTIVATING THE 48 V ELECTRICAL SYSTEM .
