Remove rear mid-range speaker
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
Preliminary work
- Refer to REMOVING LEFT AND RIGHT BACKREST SIDE SECTION .
- Refer to REMOVING THE REAR SEAT AND THE REAR SEAT BACKREST (NOT FOR THE SA465 PASS-THROUGH SYSTEM) .
- Refer to REMOVING BOTH C-PILLAR TRIM PANELS .
- Refer to REMOVING THE TRIM PANEL FOR THE STORAGE SHELF .

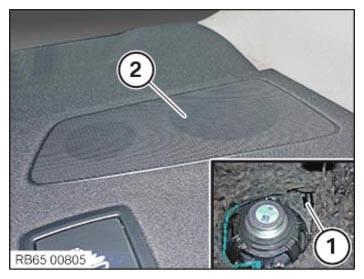

- Undo detent (1) of the speaker cover (2) and press the speaker cover (2) out of the storage shelf.

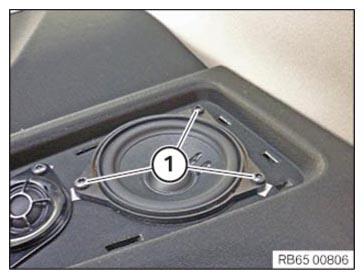

- Loosen screws (1).
- Remove mid-range speaker and disconnect the plug connection.
