Installing the mid-range speaker in the rear door

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

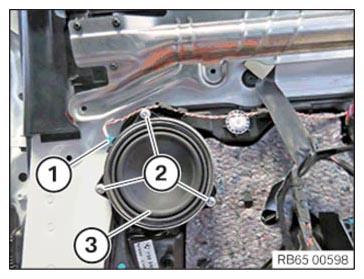

Correctly position the mid-range speaker (3).

Tighten down screws (2).

TIGHTENING TORQUES SPECIFICATION

Loudspeaker on the door/trim panel
Screw	tightening torque	2 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Connect connector (1).

Follow-up work

Refer to INSTALLING REAR DOOR TRIM PANEL .
Attaching the cover to the door handle.

Courtesy of BMW OF NORTH AMERICA, INC.
- Renew the clamps (2).
  Parts: Clamps
- Align the cover (1) on the door handle and snap it into the clamps (2).
