Remove front speaker holder
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
Preliminary work
- Refer to REMOVING THE SIDE PANEL ON THE RIGHT DASHBOARD .
- Refer to REMOVING THE DECORATIVE STRIP ON THE RIGHT DASHBOARD .
- Refer to REMOVING CENTRAL INFORMATION DISPLAY (CID) .
- Refer to REMOVING THE SPEAKER TRIM AT THE DASHBOARD .
- Refer to REMOVING THE MID-RANGE SPEAKER FROM THE DASHBOARD .

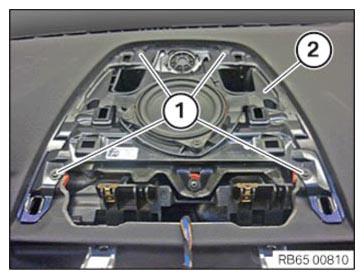

- Loosen screws (1).
- Lift up and turn over the speaker holder (2).

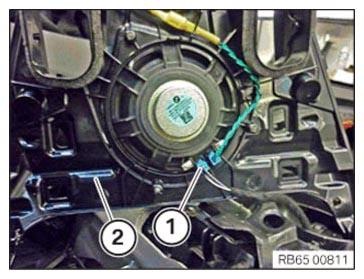

- Disconnect plug connection (1).
- Remove the speaker holder (2).
