Installing the tweeter mirror triangle

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

On equipment version with BMW Individual High End audio system:

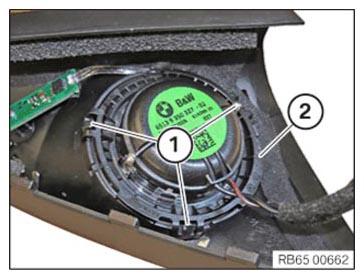

Correctly position the tweeter with the retaining ring (2).

Correctly engage the retaining ring (2) in the detents (1).

Courtesy of BMW OF NORTH AMERICA, INC.

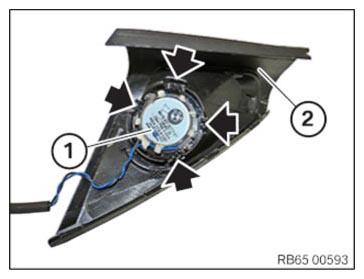

Correctly position the tweeter (1) on the trim (2) and engage in the detents (arrows).

Courtesy of BMW OF NORTH AMERICA, INC.

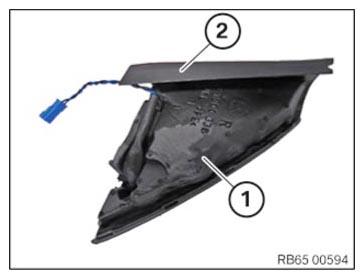

Correctly insert the foam material (1) in the trim (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

Refer to INSTALLING THE MIRROR TRIANGLE COVER .
