Installing the amplifier
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

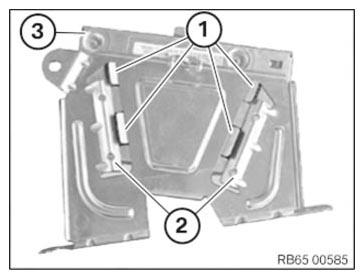

- The lugs (1) of the amplifier (3) must be correctly pushed into the guides (2) on the holder.
- Push the amplifier (3) towards the bottom into the holder.
- Tighten down screw (2).TIGHTENING TORQUES SPECIFICATION
Amplifier/RAM to holder M5 screw Tightening torque 3 Nm Nut Tightening torque 3 Nm - Connect plug connection (1) and lock.
Follow-up work
- Refer to INSTALLING STORAGE COMPARTMENT .
- Refer to INSTALLING LUGGAGE COMPARTMENT WHEEL ARCH TRIM PANEL AT LEFT .
- Refer to INSTALLING LOADING EDGE TRIM .
- Refer to CONNECTING BATTERY GROUND LEAD .
- Refer to ACTIVATING THE 48 V ELECTRICAL SYSTEM .
- Refer to ENCODING/PROGRAMING CONTROL UNIT(S) .
