Installing post amplifier
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

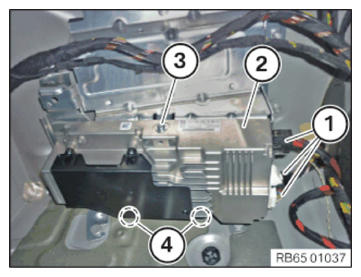

- Feed in and correctly position the post amplifier (2) at the guides (4) from the top.
- Tighten down screw (3)
.TIGHTENING TORQUES SPECIFICATION
Amplifier/RAM to holder M5 screw Tightening torque 3 Nm Nut Tightening torque 3 Nm - Connect and lock the connector (1) on the post amplifier (2) .
Follow-up work
- Refer to INSTALLING STORAGE COMPARTMENT .
- Refer to INSTALLING LUGGAGE COMPARTMENT WHEEL ARCH TRIM PANEL AT LEFT .
- Refer to INSTALLING LOADING EDGE TRIM .
- Refer to CONNECTING BATTERY GROUND LEAD . .
- Refer to ACTIVATING THE 48 V ELECTRICAL SYSTEM .
