Replace the emergency battery of the telematics control module

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

Preliminary work

Refer to REMOVING THE COVER OF THE 3RD BRAKE LIGHT .

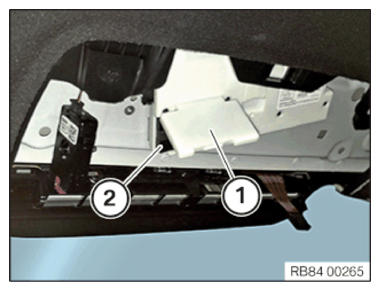

Loosen screw (1) .
Loosen screw (2) .
Unlock plug connection (3) and disconnect.
Release the cable clip (4) .

Courtesy of BMW OF NORTH AMERICA, INC.
Release the clips (1) using the special tool 2 298 505 and position it as shown.

Courtesy of BMW OF NORTH AMERICA, INC.
Lower the headliner (1) to the marked points by maximum 20 mm.
Insert the screwdriver (2) .

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock the lock (1) with the screwdriver (2) .
Slide the telematics control module (3) in the arrow direction and guide it out to the rear.

Courtesy of BMW OF NORTH AMERICA, INC.
Open the battery compartment on the telematics control module (1) .
Feed out the emergency battery (2) out of the battery compartment.
Replace the emergency battery (2) .
Parts: Emergency battery
Close battery compartment on telematics control unit (1) .

Courtesy of BMW OF NORTH AMERICA, INC.
Guide in the telematics control module (1) and position it correctly.

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: To provide a better overview: Illustration of surrounding parts removed.

Attach the telematics control module (1) to the roof antenna (4) .
Press the telematics control module (1) forward slightly so that the guides (2) align with the guides (3) . While doing sort, press in the locking pin (5) so that it is flat and position the telematics control module (1) .

Courtesy of BMW OF NORTH AMERICA, INC.
Pull the telematics control module (1) in the arrow direction using the special tool 0 494 365 (51 3 252) until the interlock (2) locks correctly.
Ensure the correct fit of the telematics control module (1) .

Courtesy of BMW OF NORTH AMERICA, INC.
Position the clips (1) correctly and clip them in.

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten down screw (1) .

TIGHTENING TORQUES SPECIFICATION

Interference suppression filter to body
Screw	tightening torque	3 Nm

Tighten down screw (2) .

Courtesy of BMW OF NORTH AMERICA, INC.

TIGHTENING TORQUES SPECIFICATION

Antenna amplifier to body
Screw	tightening torque	2.50 Nm

Connect connector (3) .
Fasten the cable clip (4) .

Follow-up work

Installing the 3rd brake light cover.

Courtesy of BMW OF NORTH AMERICA, INC.
- Correctly position the cover (1) on the roofliner (2) and clip in.
