Installing the tailgate lock
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

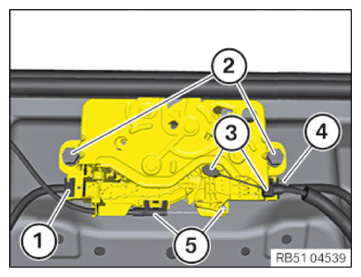

- Tighten down screws (2) .
TIGHTENING TORQUES SPECIFICATION
| Tailgate lock to body | ||
|---|---|---|
| Hexagon screw M8x20 |
Tightening torque | 19 Nm |
- Connect plug (1) .
- Version with Automatic Soft Close system:
Attach the Bowden cable (3) .
Connect plug (4) .
- Version with emergency release:
Attach the Bowden cable (5) .
Follow-up work
- Refer to INSTALLING LOADING EDGE TRIM .
- Refer to INSTALLING THE LUGGAGE COMPARTMENT FLOOR COVERING .
