Installing the Night Vision camera
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

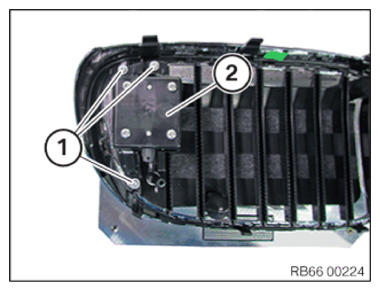

- Loosen the screws (1) and remove the Night Vision camera (2).
- Correctly position the Night Vision camera (2) and tighten the screws (1).
TIGHTENING TORQUES SPECIFICATION
| Night Vision camera on front ornamental grille | ||
|---|---|---|
| Tightening Torque | 2 Nm | |
- With G11/G12 build level from 03/19

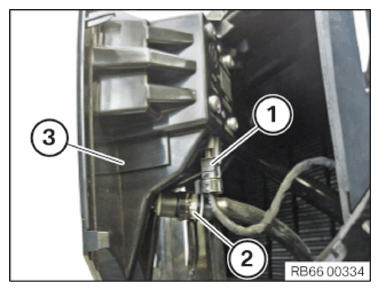

Position Night Vision camera (3) with the cover.
Slide on and lock hose pipe (2).
Connect connectors (1) and lock.
- With G11/G12 build level from 03/19

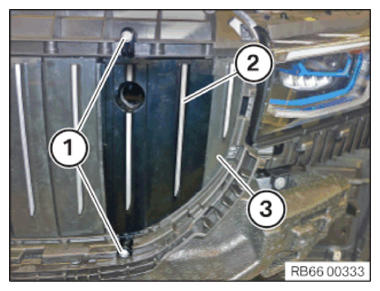

Insert cover (2) of the Night Vision camera correctly into the air flap control (3).
Tighten the screws (1).
TIGHTENING TORQUES SPECIFICATION
| Night Vision camera on front ornamental grille | ||
|---|---|---|
| Tightening Torque | 2 Nm | |
Follow-up work
- Refer to INSTALLING FRONT ORNAMENTAL GRILLE .
