Installing the front camera

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: To provide a better overview: Schematic diagram with partially hidden components.

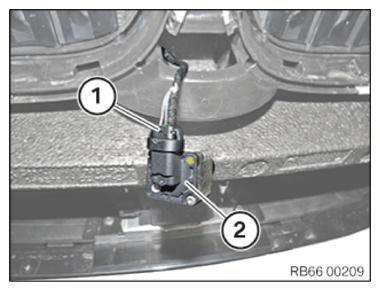

Position and connect the connector (1) to the front camera (2).

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: To provide a better overview: Schematic diagram with partially hidden components.

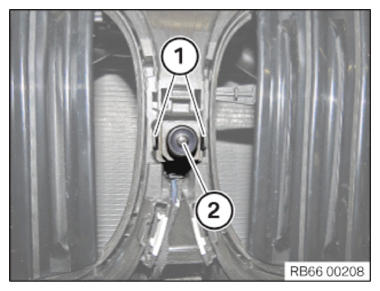

Correctly position the front camera (2) and engage it with the detents (1).

Courtesy of BMW OF NORTH AMERICA, INC.

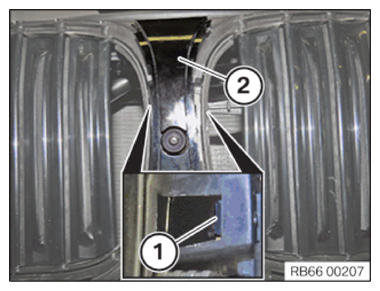

Correctly position the trim (2) and engage it with the detents (1).

Courtesy of BMW OF NORTH AMERICA, INC.

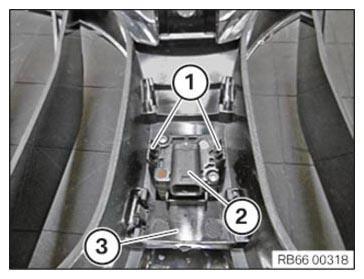

Correctly insert the front camera (2) into the center of the front grille (3) .
Lock the locks (1) .

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

Refer to INSTALLING FRONT ORNAMENTAL GRILLE .
