Installing the top view camera

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

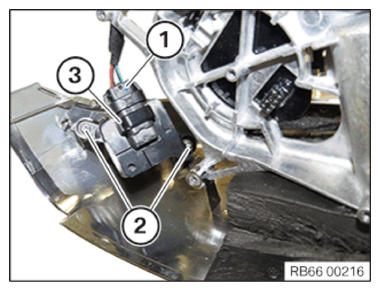

Correctly position the top view camera (3).
Tighten down screws (2).

TIGHTENING TORQUES SPECIFICATION

Top view camera to vehicle exterior mirror
screw	Tightening torque	0.85 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Connect connectors (1) and lock.
Premium repair instructions

Follow-up work

Refer to INSTALLING THE RETAINING RING ON THE OUTSIDE REARVIEW MIRROR .
Refer to INSTALLING THE PROTECTIVE CAP OF THE EXTERIOR VEHICLE MIRROR .
Refer to INSTALLING THE MIRROR GLASS .
