Remove the rear view camera (RFK)
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
Preliminary work
- Refer to REMOVING THE POWER TAILGATE SWITCH .
- Refer to REMOVING TAILGATE TRIM PANEL .
- Refer to REMOVING THE TAILGATE BUTTON .

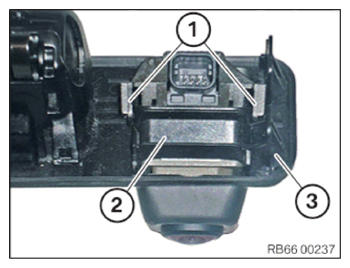

- Loosen the detents (1) on the holder of the rear view camera (RFK) (2) and remove the holder.
- Disassemble and remove the rear view camera (RFK) (2) from the button for the trunk lid (3).
