Install the KAFAS camera with the integrated control unit

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

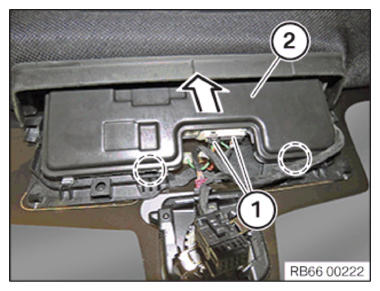

Push the KAFAS camera (2) in the direction of arrow and engage in latch mechanisms in marked areas.
Position and connect the connectors (1).

G12676636

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

Refer to INSTALLING THE INTERIOR REARVIEW MIRROR .
Refer to INSTALLING THE COVERS FOR THE INTERIOR REARVIEW MIRROR .
