Installing the side rear radar sensor
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Description is for left component only. Procedure on the right side is identical.

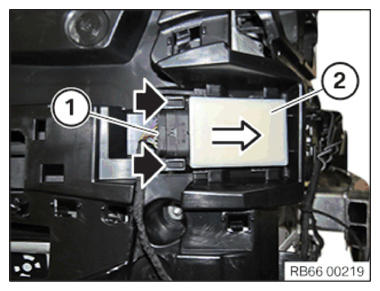

- Position side radar sensor (2) correctly and slide it in the arrow direction.
- Ensure that the detents (arrows) engage correctly.
- Connect connector (1).
NOTE:
TECHNICAL INFORMATION
If the component described below has not been installed as yet, it should be retrofitted.
If the component described below has not been installed as yet, it should be retrofitted.

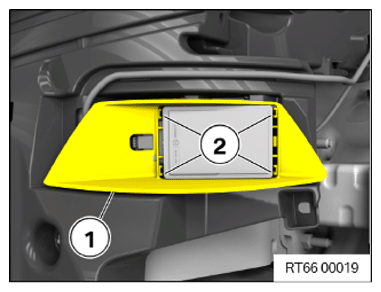

- Position the absorber (1) and lock with the snap-in lugs (2).
- Ensure that absorber (1) engages correctly in snap-in lugs (2).
Follow-up work
- Refer to INSTALLING THE REAR BUMPER COVER .
- Refer to INSTALLING BOTH TAIL LIGHTS ON THE SIDE PANEL .
- Refer to INSTALLING LUGGAGE COMPARTMENT WHEEL ARCH TRIM PANEL AT LEFT .
- Refer to INSTALLING THE LUGGAGE COMPARTMENT WHEEL ARCH TRIM PANEL ON THE RIGHT .
- Refer to INSTALLING LOADING EDGE TRIM .
- Refer to INSTALLING THE LUGGAGE COMPARTMENT FLOOR COVERING .
- Refer to ADDITIONAL WORK AFTER THE INSTALLATION/REPLACEMENT .
