Installing the front radar sensor long range (FRSF) with the holder
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

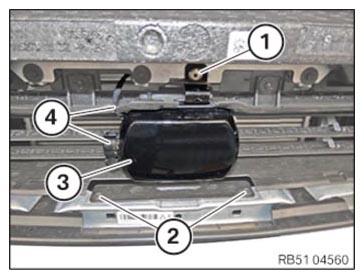

- Connect connector (4).
- Insert the front radar sensor long range (FRSF) (3) with the holder.
- Tighten the screws (2).
TIGHTENING TORQUES SPECIFICATION
| Sensor bracket/ACC sensor | ||
|---|---|---|
| Screw | Tightening torque | 8 Nm |
- Fasten the rivet (1).
- Adjusting the front radar sensor (FRS).NOTE: TECHNICAL INFORMATION
Notes on the adjustment of the ACC sensor are a fundamental requirement for these repair instructions and must be complied with at all times.NOTE: TECHNICAL INFORMATIONIf there is a "Sensor misadjusted" fault memory entry" and a correct sensor alignment using the adjustment screw is not possible, there is a suspicion of front impact damage.
In this case, the vehicle must be carefully inspected for damage. If necessary, damaged parts must be replaced. Then adjust the ACC sensor again.
A damaged / bent holder indicates a mechanical misuse of the vehicle and will not be considered to be a warranty case.
Checking the vehicle and components for damage.
Check
- In the visible areas, precise visual inspection of:
- damage
- deformation
Result
Damage or deformation.
Measure
- Adjust front radar sensor (FRS).

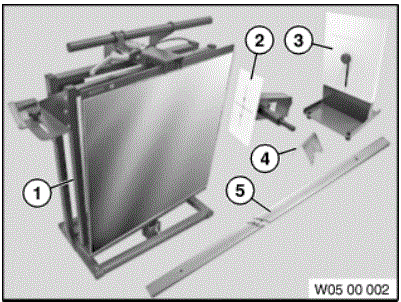

- Stage special tools 0 442 898 and 2 338 466 .
- Set up the special tool as per provided operating instructions.
- Connect diagnostic system
- Service functions
- Driver assistance
- Front radar sensor (FRS)
- Commissioning the front radar sensor (FRS)

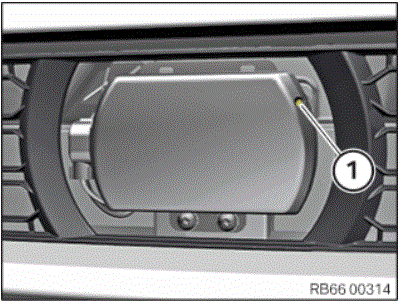

NOTE: Schematic diagram is for example purposes. Some parts may differ in certain details.- To adjust the front radar sensor (FRS), twist screw (1) using the standard tool.
Standard tools:
Screwdriver for hexagon socket SW3
(Shaft length> 90mm)
- Refer to INSTALLING BUMPER COVER, FRONT .
- Refer to INSTALLING FRONT ORNAMENTAL GRILLE .
- Refer to INSTALLING FRONT SECTION OF THE FRONT WHEEL ARCH COVER (PARTIALLY REMOVED) .
