Installing the ACC sensor

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

Check ball hub (2) for damage and, if necessary, replace it.

Courtesy of BMW OF NORTH AMERICA, INC.

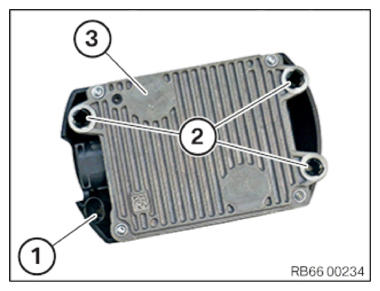

Check detents (2) of radome (1) on ACC sensor (3) for damage.

Courtesy of BMW OF NORTH AMERICA, INC.

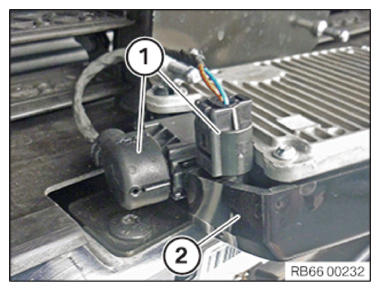

Attach ACC sensor (2) to the radome.
Connect connector (1) to ACC sensor (2) and lock it.

Courtesy of BMW OF NORTH AMERICA, INC.

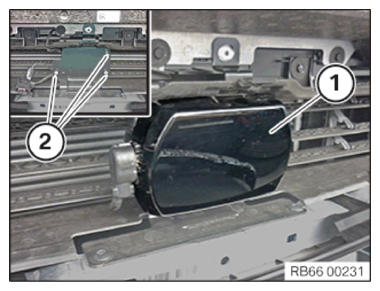

Engage ACC sensor (1) with the radome on ball hub (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

Refer to ADJUSTING THE ACC SENSOR .
Refer to INSTALLING BUMPER COVER, FRONT .
Refer to INSTALLING FRONT ORNAMENTAL GRILLE .
Refer to INSTALLING FRONT SECTION OF THE FRONT WHEEL ARCH COVER (PARTIALLY REMOVED) .
