Installing Trunk Lid

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: RISK OF DAMAGE
Mechanical effects.
Paint damage.

Mask those working areas at risk with yellow plastic adhesive tape.
Remove and install heavy or bulky components with the aid of another person/other persons.

Courtesy of BMW OF NORTH AMERICA, INC.

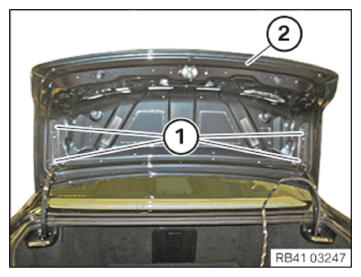

Position trunk lid (2) on the hinge.

Tighten the screws (1).

TIGHTENING TORQUE SPECIFICATIONS

Trunk lid to the hinge
Screw	tightening torque	19 Nm

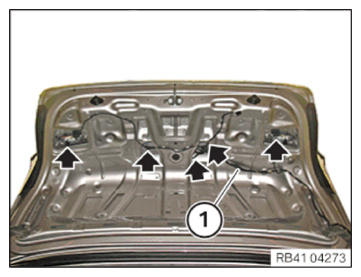

Fasten harness (1) at the marked locations.

Courtesy of BMW OF NORTH AMERICA, INC.

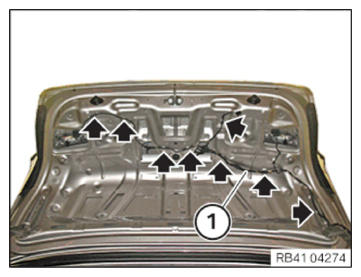

Connect all connectors (arrows) of the wiring harness (1).

Courtesy of BMW OF NORTH AMERICA, INC.
