Adjusting The Tailgate
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
Check
TECHNICAL DATA SPECIFICATION
| Gap dimension rear quarter panel to trunk lid | ||
| 1 rear quarter panel; 2 trunk lid | a | 3.5 +1-1 mm |
| b | 0.3 +1-1 mm | |
TECHNICAL DATA SPECIFICATION
| Gap dimension trunk lid to rear bumper panel | ||
| 1 trunk lid; 2 rear bumper panel | a | 5.1 +1.2-1.2 mm |
Result
» Gap dimensions do not correspond to the specifications.
Measure
- Adjust trunk lid.

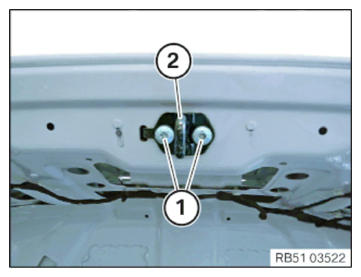

Remove striker for tailgate latch
- Loosen screws (1).
- Remove the striker for the tailgate latch (2).
NOTE:
Perform the steps on the right and left side.

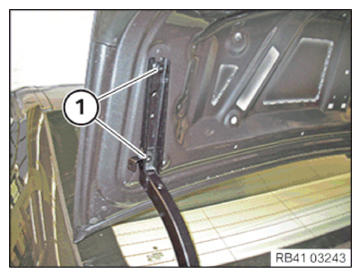

- Slacken the screws (1) until the tailgate can be shifted.
- Move the tailgate in a longitudinal direction and sideways until the tailgate has the specified gap dimension to the side panel.
- Tighten down screws (1).
TIGHTENING TORQUE SPECIFICATIONS
| Trunk lid to the hinge | ||
| Screw | tightening torque | 19 Nm |
Install striker for the tailgate latch
- Install the striker for the tailgate latch (2).
- Tighten down screws (1).
TIGHTENING TORQUE SPECIFICATIONS
| Striker to rear lid | ||
| screw | Tightening torque | 18.5 Nm |
