Adjusting Rear Lid Lock

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

Check

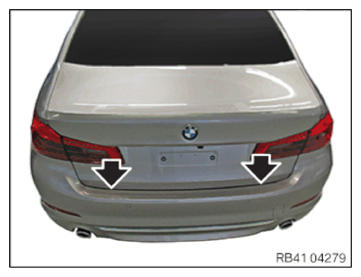

Check the gap dimensions (arrows) between the trunk lid and bumper cover.

Courtesy of BMW OF NORTH AMERICA, INC.

TECHNICAL DATA SPECIFICATION

Gap dimension trunk lid to rear bumper panel
1 trunk lid; 2 rear bumper panel Courtesy of BMW OF NORTH AMERICA, INC.	a	5.1 ^+1.2_-1.2 mm

Result

» Gap dimensions do not correspond to the specifications.

Measure

Adjust tailgate latch.

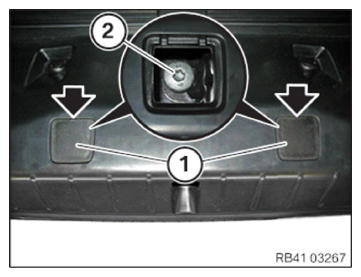

Lever out the covers (1) at the recesses (arrows) with a screwdriver and remove them.
Loosen screws (2) until the tailgate lock can be shifted.
Adjusting tailgate lock.

Courtesy of BMW OF NORTH AMERICA, INC.

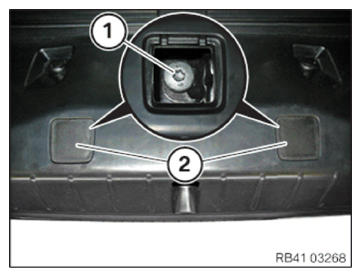

Tighten down screws (1).

TIGHTENING TORQUE SPECIFICATIONS

Tailgate lock to body
M8x20 screw	Tightening torque	19 Nm

Clip in the covers (2).

Courtesy of BMW OF NORTH AMERICA, INC.

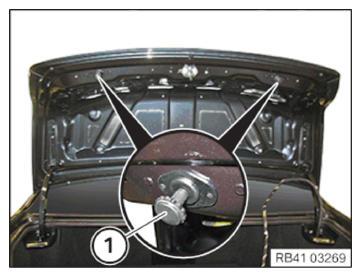

Adjust stop pad (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

Refer to INSTALLING THE TAILGATE TRIM PANEL .
Refer to INSTALL THE POWER TAILGATE SWITCH .
