Installing The Engine Compartment Lid Hinge, Left
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

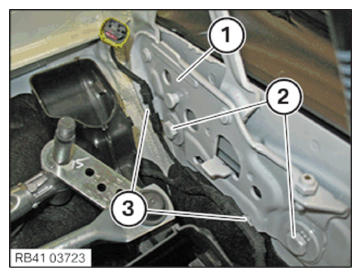

- Position the engine compartment lid hinge (1) as per the available screw marks.
- Tighten down screws (2)
.TIGHTENING TORQUE SPECIFICATIONS
Engine compartment lid hinge to body screw Tightening torque 28 Nm - Clip in the cable bracket (3) .
Follow-up work
- Refer to INSTALL THE ACTUATOR ON THE LEFT HOOD HINGE .
- Refer to INSTALLING WINDSHIELD PANEL COVER .
- Refer to INSTALL LEFT AND RIGHT WIPER ARM .
- Refer to INSTALL THE REAR RIGHT ENGINE COMPARTMENT COVER .
- Refer to INSTALL THE COVER OF THE ENGINE COMPARTMENT ON THE REAR LEFT .
- Refer to INSTALLING THE GAS PRESSURE SPRING FOR HOOD .
- Refer to INSTALL HOOD .
- Refer to CHECK THE GAP DIMENSION OF THE HOOD .
- Refer to INSTALLING THE NOZZLE CHAIN .
- Refer to DISCONNECTING ALL BATTERY GROUND LEADS .
