Remove The Rear Door

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

Preliminary work

Follow-up work

NOTE: Description is for left component only. Procedure on the right side is identical.

Open door.

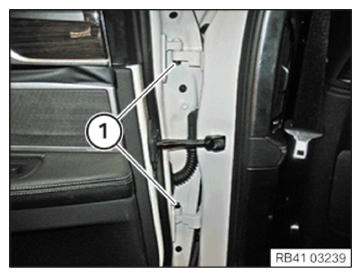

Loosen screws (1) between both hinge elements at top and bottom.

Courtesy of BMW OF NORTH AMERICA, INC.
Pull lock (1) upward direction and disconnect plug connection.
NOTE:
RISK OF DAMAGE
Mechanical effects.
Paint damage.
- Mask those working areas at risk with yellow plastic adhesive tape.
- Remove and install heavy or bulky components with the aid of another person/other persons.
Courtesy of BMW OF NORTH AMERICA, INC.
Secure door against closing.
Loosen screw (2) at door stop.
Detach door in upward direction and set down on a suitable surface.
