Installing The Front Door
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
RISK OF DAMAGE
Mechanical effects.
Paint damage.
Mechanical effects.
Paint damage.
- Mask those working areas at risk with yellow plastic adhesive tape.
- Remove and install heavy or bulky components with the aid of another person/other persons.
- Attach door from above.
- Secure door against closing.

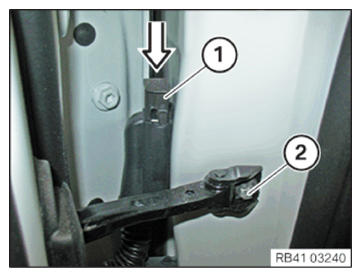

- Connect the connector and press the lock (1) down.
- Tighten screw (2) at door stop.TIGHTENING TORQUE SPECIFICATIONS

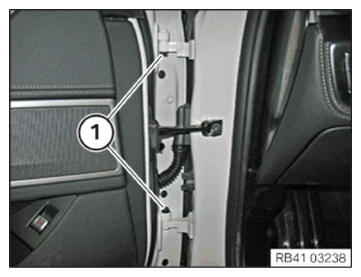

Door stop to pillar screw Tightening torque 28 Nm - Tighten screws (1) between both hinge elements at top and bottom.TIGHTENING TORQUE SPECIFICATIONS
Screw connection, hinge parts screw Tightening torque 27 Nm
Follow-up work
- Refer to DISCONNECTING ALL BATTERY GROUND LEADS .
- Refer to ACTIVATING THE 48 V ELECTRICAL SYSTEM .
