Adjust Front Door

Preliminary work

Follow-up work

Check

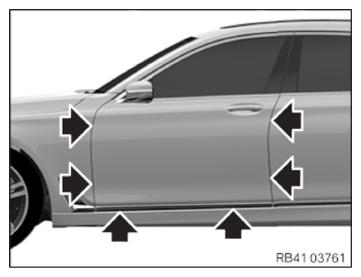

• Check gap dimension between front door and the adjacent body parts.

  Courtesy of BMW OF NORTH AMERICA, INC.

  Result

  » Gap dimensions do not correspond to the specifications.

  Measure

  • Adjust the front door.
• Open the front door.

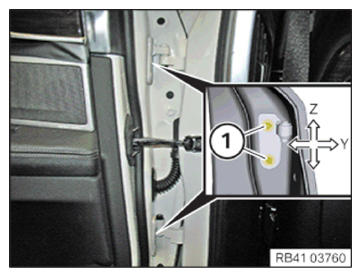

• Slacken screws (1) until the front door can be shifted.
• Adjust the height (Z) of the front door.
• Adjust the width (Y) of the front door.
• Tighten down screws (1).
  TIGHTENING TORQUE SPECIFICATIONS



  Front door to door hinge
  screw	Tightening torque	19 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

  Adjust lock striker

  Precondition

  The screws on lock striker are loosened so far that the lock striker can still be shifted.

  NOTE: TECHNICAL INFORMATION
  The gap dimensions form the basis for these repair instructions and must be observed without fail.
  For additional information see: BODY DIMENSIONS .
• Adjust the height of the lock striker so that the door lock does not bump or drag.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Move lock striker sideways in order to adjust the gap dimensions between door and rear quarter panel.
• Tighten down screws (1).
