Supplying The New Parts Required
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
TECHNICAL INFORMATION
- Observe the procedure for repair stage 2.
For additional information see: REPAIR TECHNIQUES, REPAIR STAGE 2 REP-ALG-RAGRP41-410000A_REPSTUFE_2 - V.9 (M5 2018-2022, M5 Competition 2019-2022, M5 CS 2022) .
Preliminary work
Follow-up work
- Prepare the following new parts (see Electronic Parts Catalog [EPC]):

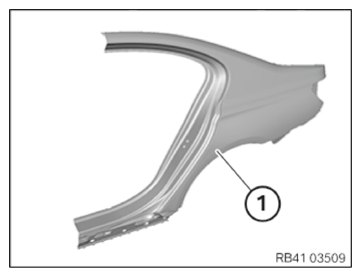

Rear wall (1)
Reinforcement plate, door sill
Reinforcement plate, C-pillar
Plastic nut
NOTE: TECHNICAL INFORMATION
For additional information see: OVERVIEW OF CONSUMABLES (ELECTRONIC PARTS CATALOG) REP-ALG-RAGRP41-4103211 - V.30 (M5 2018-2022, M5 Competition 2019-2022, M5 CS 2022) . - Supply the following consumables:
| Material | Quantity |
|---|---|
| Adhesive K5 (195 ml) | 1 |
| Adhesive K5 (50 ml) | 1 |
| Blind rivet N3 | 20 |
| Punch rivet N4 | 35 |
| Punch rivet N5 | 5 |
| EMC screw | 4 |
| Cleaning agent R1 | 1 |
| Cleaning agent R2 | 1 |
| Cavity protection wax remover | |
| Sealing compound D1 |
