Removing The Rear Left Side Panel
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

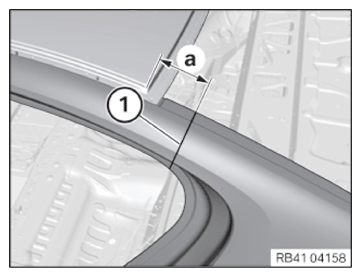

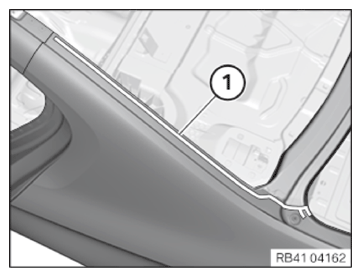

- Mark the separating cut (1) on the C-pillar according to the dimensions and cut. Disconnect only the outer panel.
Dimension a = 115 mm from the corner of the roof outer skin.
- Compare position of severance cut with reinforcement plate.NOTE: TECHNICAL INFORMATION
For additional information see: SEPARATING CUT DETERMINATION WITH A TEMPLATE REP-REP-RAGRP41-4105601 - V.25 (M5 2018-2022, M5 Competition 2019-2022, M5 CS 2022) . - Determine position of the severance cut in addition to the dimensions with the aid of a template (1).

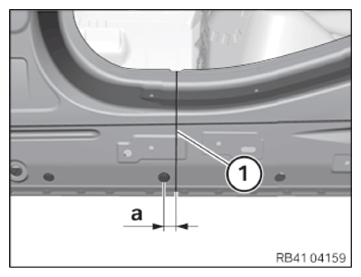

- Mark the separating cut (1) on the door sill according to dimensions and disconnect. Disconnect only the outer panel.
Dimension = 20 mm from the center of the hole with 20 mm diameter.
- Compare position of severance cut with reinforcement plate.NOTE: TECHNICAL INFORMATION
For additional information see: OPENING BONDED CONNECTIONS REP-ALG-RAGRP41-4105702 - V.3 (M5 2018-2022, M5 Competition 2019-2022, M5 CS 2022) .NOTE: TECHNICAL INFORMATION

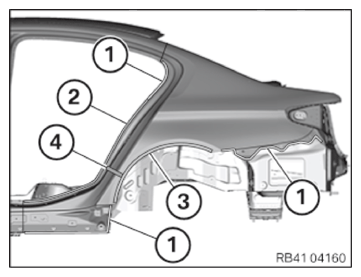

For additional information see: OPENING BONDED CONNECTIONS REP-ALG-RAGRP41-4105702 - V.3 (M5 2018-2022, M5 Competition 2019-2022, M5 CS 2022) . - Release welded connections in areas (1).
- Release the spot-welded adhesive joints in area (2).
- Release folded bonded joints in area (3).
- Release the side panel from the cavity sealings (4).

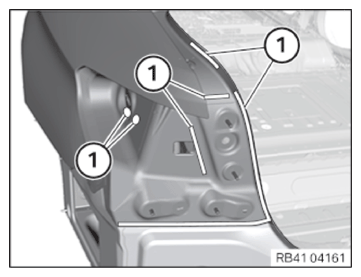

- Release welded connections in areas (1).
- Open welded connections in area (1). Remove side wall.

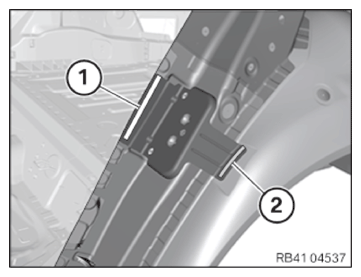

- Open welded connections in area (1).
- Release bonded joint (2).
- Remove lock striker reinforcement.
