Prepare New Part

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

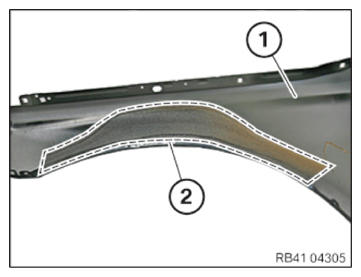

Coat the side panel (1) before painting in this area (2) using sealant D1.
CONSUMABLE DESCRIPTION

Sealant D1 (seam sealing) 310 ml 83422409985
Paint side panel.

Courtesy of BMW OF NORTH AMERICA, INC.

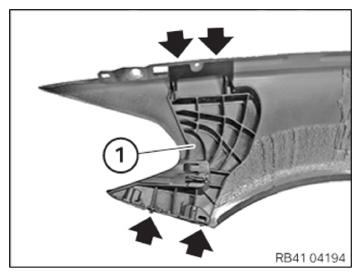

Unclip the holder (1) from the damaged side panel (arrows).

Courtesy of BMW OF NORTH AMERICA, INC.

Check

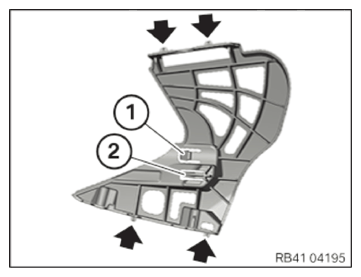

Check the holder for damage (arrows).
Check the lock (1) and guide for the headlight (2) for damage.

Courtesy of BMW OF NORTH AMERICA, INC.

Result

» Holder (1) damaged.

Measure
- Replace the holder (1) .
Position and clip in the holder (1) on the new side panel. (Arrow).
Make sure that the detents engage correctly.

Courtesy of BMW OF NORTH AMERICA, INC.

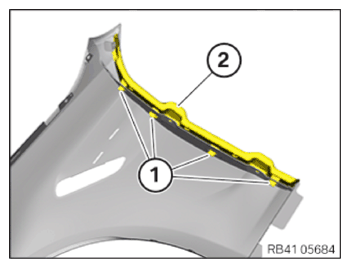

Release the detents (1) and remove the seal (2) from the side panel to be replaced.
Position the seal (2) at the new side panel and clip into the detents (1) .

Courtesy of BMW OF NORTH AMERICA, INC.

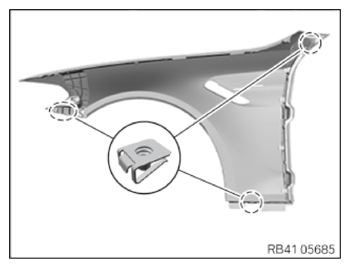

Remount the metal clamps (1) on the new part.

Courtesy of BMW OF NORTH AMERICA, INC.
