Install The Side Panel On The Right

• Open the front door.

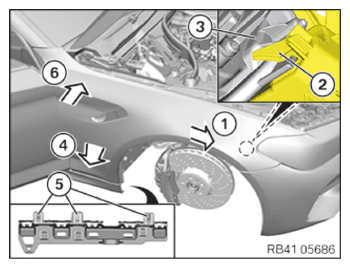

• Install the side panel in the area of the headlight, shifting from the rear to the front of the vehicle (1).
• Carry out the step with a second person helping.
• To do this, position the guide (2) of the side panel on the headlight (3).
• Clip in the side panel downwards in the locks (5) in the area of the A-pillar (4).
• Position side panel in the area of the A-pillar (6).
• Replace all bolts.

  Parts:  Screws

  Courtesy of BMW OF NORTH AMERICA, INC.

• Screw in all the screws of the side panel until the side panel can only just be shifted.
  NOTE: TECHNICAL INFORMATION
  The gap dimensions form the basis for these repair instructions and must be observed without fail.
  For additional information see: BODY DIMENSIONS .
• Adjust gap dimensions.

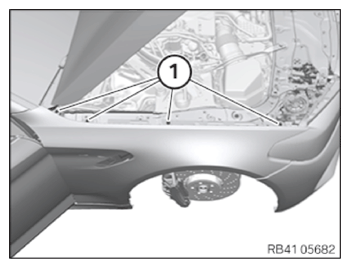

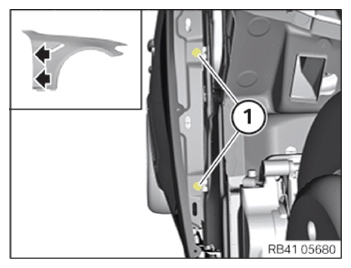

• Tighten down screws (1).
  TIGHTENING TORQUE SPECIFICATIONS



  Side panel to bracket
  M6 screw Renew screw.	tightening torque	8 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

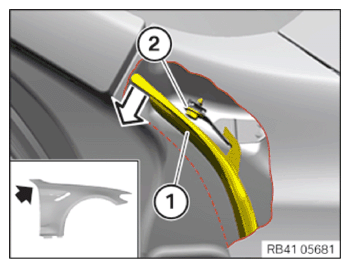

• Pull sealing (1) downwards a bit.
• Tighten down screw (2).
  TIGHTENING TORQUE SPECIFICATIONS



  Side panel to bracket
  M6 screw Renew screw.	tightening torque	8 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Move the seal (1) back to the installation position.
• Close front door.

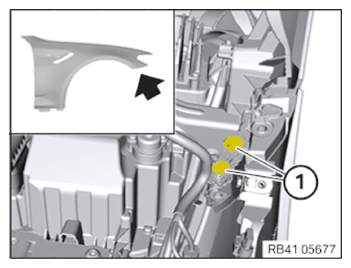

• Tighten down screws (1).
  TIGHTENING TORQUE SPECIFICATIONS



  Side panel to bracket
  M6 screw Renew screw.	tightening torque	8 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

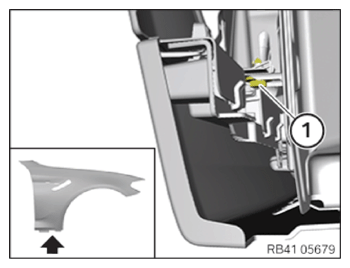

• Tighten down screw (1).
  TIGHTENING TORQUE SPECIFICATIONS



  Side panel to bracket
  M6 screw Renew screw.	tightening torque	8 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Tighten the screws (1) for the rocker panel cover (2).
  TIGHTENING TORQUE SPECIFICATIONS



  Undershield
  screw	Tightening torque	2.6 Nm
  Plastic nut	Tightening torque	2.6 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

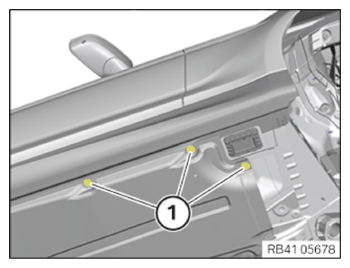

• Tighten down screws (1).
  TIGHTENING TORQUE SPECIFICATIONS



  Side panel to bracket
  M6 screw Renew screw.	tightening torque	8 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

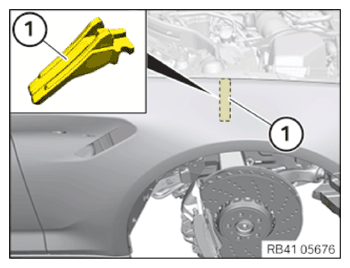

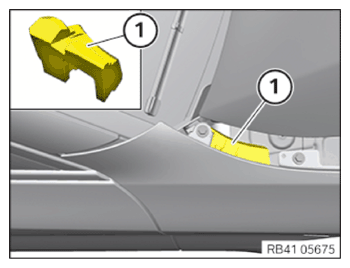

• Install the sound insulation (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Install the sound insulation (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

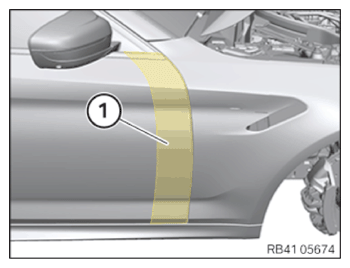

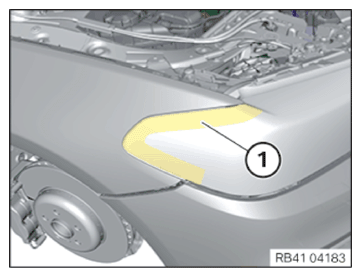

• Remove protective film (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Remove protective film (1) on headlight.

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING WASHER FLUID RESERVOIR .
• Refer to INSTALLING THE AIR DUCT ON THE SIDE PANEL, RIGHT .
• Refer to INSTALLING THE TRIM ON THE FRONT RIGHT SIDE PANEL .
• Refer to INSTALLING THE FRONT RIGHT BUMPER COVER ON THE SIDE PANEL .
• Refer to INSTALL REAR SECTION OF THE FRONT RIGHT WHEEL ARCH COVER .
• Refer to INSTALL THE FRONT SECTION OF THE FRONT RIGHT WHEEL ARCH COVER .
• Refer to MOUNTING THE WHEEL .
• Refer to RESETTING THE TIRE PRESSURE MONITOR .
• Refer to INSTALLING THE MOUNT OF THE HOOD SEAL .
• Refer to INSTALL THE LID FOR THE WASHER FLUID RESERVOIR .
• Refer to INSTALL THE REAR RIGHT ENGINE COMPARTMENT COVER .
• Refer to INSTALLING THE COVER IN THE ENGINE COMPARTMENT ON THE RIGHT .
