Removing The Front Left Side Panel

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Vehicle may slip off the vehicle hoist if the vehicle hoist is handled incorrectly.
Danger! Immobilization period-threatening injuries!

Observe safety instructions on raising the vehicle using a vehicle hoist.
For additional information see:RAISING THE VEHICLE WITH A VEHICLE LIFT REP-REP-RAG110-00ANHEB - V.24 (M5 2018-2022 M5 COMPETITION 2019-2022, M5 CS 2022) .

Preliminary work

Refer to REMOVING THE COVER IN THE ENGINE COMPARTMENT ON THE LEFT .
Refer to REMOVE THE COVER OF THE ENGINE COMPARTMENT AT THE REAR LEFT .
Refer to REMOVING THE MOUNT OF THE HOOD SEAL .
Refer to REMOVING THE WHEEL .
Refer to REMOVE THE FRONT SECTION OF THE FRONT WHEEL ARCH COVER .
Refer to REMOVE THE REAR SECTION OF THE FRONT WHEEL ARCH COVER FRONT .
Refer to REMOVING THE TRIM FROM THE FRONT SIDE PANEL .
Refer to REMOVING THE AIR DUCT ON THE SIDE PANEL .
Refer to PARTIALLY DETACHING BUMPER COVER, FRONT, AT SIDE PANEL .

Mask area (1) on the headlight with a plastic adhesive tape.

Courtesy of BMW OF NORTH AMERICA, INC.
Mask the area (1) of the door with plastic adhesive tape.

Courtesy of BMW OF NORTH AMERICA, INC.
Remove the sound insulation (1).

Courtesy of BMW OF NORTH AMERICA, INC.
Remove the sound insulation (1).

Courtesy of BMW OF NORTH AMERICA, INC.
Release screws (1) (arrow).

Courtesy of BMW OF NORTH AMERICA, INC.
Release screws (1) at the door sill trim panel.

Courtesy of BMW OF NORTH AMERICA, INC.
Release screw (1) (arrow).

Courtesy of BMW OF NORTH AMERICA, INC.
Release screws (1) (arrows).

Courtesy of BMW OF NORTH AMERICA, INC.

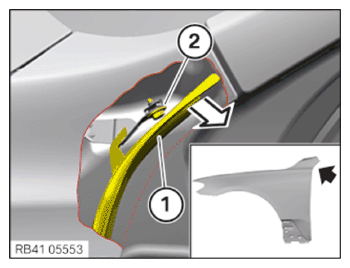

Open the front door.
Pull the sealing (1) down slightly in the direction of the arrow.
Release screw (2) (arrow).

Courtesy of BMW OF NORTH AMERICA, INC.
Loosen screws (1).

Courtesy of BMW OF NORTH AMERICA, INC.

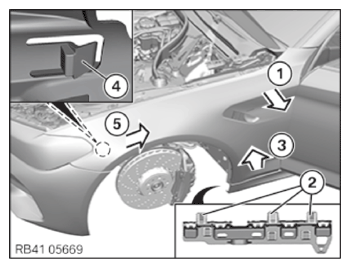

NOTE: TECHNICAL INFORMATION
Conduct the following operation with the assistance of a second person.
Pull side panel in upper area of A-pillar (1) in direction of arrow.
Release detents (2) on the holder of the door sill trim panel.
Release lower side panel in area of door sill trim panel (3) in direction of arrow in upwards direction.

Courtesy of BMW OF NORTH AMERICA, INC.
Pull side panel at latch mechanism (4) on headlight (5) in direction of arrow towards rear and remove.
