Installing The Tail Panel

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Perform the steps on the left and right side.

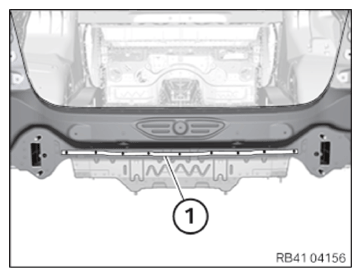

Do not apply any adhesive in area (1).

Courtesy of BMW OF NORTH AMERICA, INC.
Pre-clean bonding surfaces on vehicle and on new part with cleaning agent R2.
CONSUMABLE DESCRIPTION

Cleaning agent R2 500 ml 83190417324
Clean bonding surfaces on vehicle and on new part with cleaning agent R1.
CONSUMABLE DESCRIPTION

Cleaning agent R1 100 ml, Bottle 83192211217
Apply adhesive K5 to bonding surfaces.
ADHESIVE DESCRIPTION

Body adhesive K5 195 ml 83195A59935

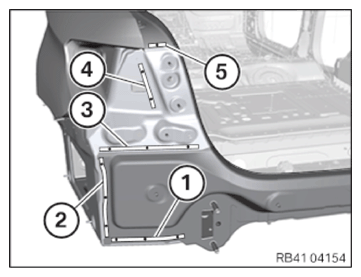

Install the rear trim panel in the areas (1) to (5) with blind rivets N3.
CONSUMABLE DESCRIPTION

Blind rivet N3
Ø 4 mm; clamping area 1-3 mm 83190301421

Courtesy of BMW OF NORTH AMERICA, INC.
Use 9 punch rivets N4 in the area (1).
CONSUMABLE DESCRIPTION

Punch rivet N4
Ø 3 mm; 4 mm long 83192457307

Courtesy of BMW OF NORTH AMERICA, INC.

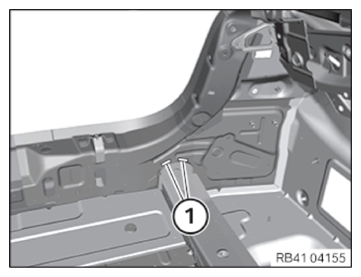

Use 5 punch rivets N4 in the area (1).

CONSUMABLE DESCRIPTION

Punch rivet N4
Ø 3 mm; 4 mm long

83192457307

Courtesy of BMW OF NORTH AMERICA, INC.

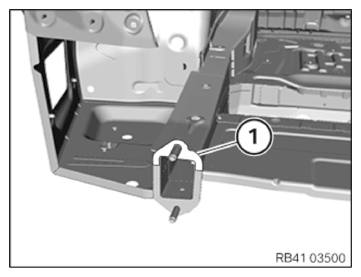

Installing the EMC screw

Drill a hole with a diameter of 4.2 mm.
In the case of glued connections, only drill the hole after the adhesive has fully hardened.
Screw in the EMC screw.
CONSUMABLE DESCRIPTION

EMC screw SF Plus M5x15 83190301639
Seal the EMC screw with the sealant.
CONSUMABLE DESCRIPTION

Sealant D1 (seam sealing) 310 ml 83422409985

NOTE: TECHNICAL INFORMATION
Avoid contact of the escaped adhesive with the support for the bumper cover. Do not use any cleaning agents containing solvents.

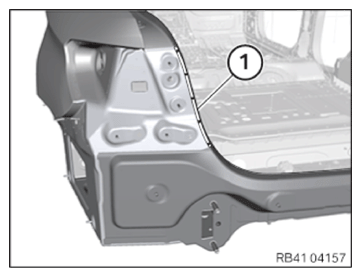

Press in the tail cowling in area (1) and remove the emerging adhesive.
Before the adhesive hardens, install the support for the bumper cover.
After the adhesive has hardened, install 3 EMC screws in the areas (2) shown.

Courtesy of BMW OF NORTH AMERICA, INC.

CONSUMABLE DESCRIPTION

screw
EMC screw, SF Plus, M5x15 83190301639

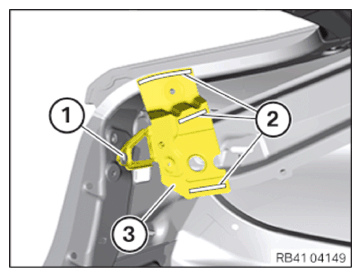

Install the support (3).
Position and tighten the screw (1).
TIGHTENING TORQUE SPECIFICATIONS

Support to tail panel

Screw M6 8 Nm
Weld the support (3) in areas (2).

Courtesy of BMW OF NORTH AMERICA, INC.
In the areas (1), set two MAG weld seams with a length of 20 mm.
Avoid excessive application of heat to adhesive areas.

Courtesy of BMW OF NORTH AMERICA, INC.

Support to tail panel
Screw M6	8 Nm
