Remove Tail Panel Outer Section

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Perform the steps on the left and right side.

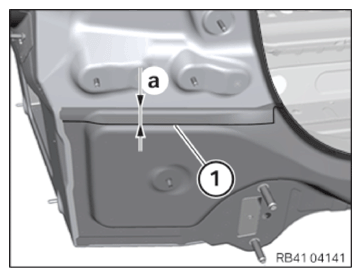

Mark severance cut (1) in accordance with dimension and disconnect. Disconnect only the outer panel.
Dimension A = approx. 23 mm below the component edge of the tail light stand.

NOTE: Install new part overlapping in area of severance cut.

Courtesy of BMW OF NORTH AMERICA, INC.

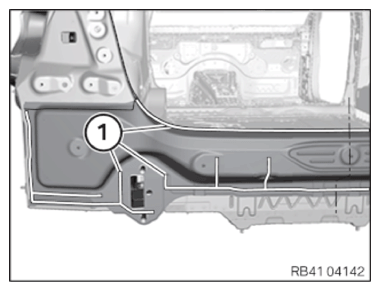

Release welded connections in areas (1). Remove tail panel.

Courtesy of BMW OF NORTH AMERICA, INC.
