Install Tail Panel Outer Section
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Perform the steps on the left and right side.
- Pre-clean bonding surfaces on vehicle and on new part with cleaning agent R2.CONSUMABLE DESCRIPTION
Cleaning agent R2 500 ml 83190417324 - Clean bonding surfaces on vehicle and on new part with cleaning agent R1.CONSUMABLE DESCRIPTION
Cleaning agent R1 100 ml, Bottle 83192211217 - Apply adhesive K5 to bonding surfaces.ADHESIVE DESCRIPTION

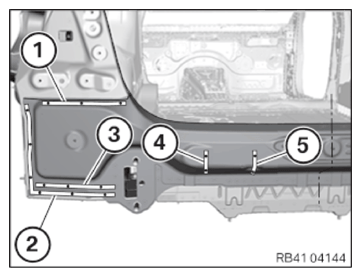

Body adhesive K5 195 ml 83195A59935 - Install the new part and rivet in areas (1) to (5) with blind rivets N3.CONSUMABLE DESCRIPTION
Blind rivet N3

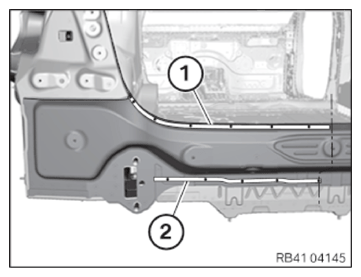

Ø 4 mm; clamping area 1-3 mm83190301421 - Rivet the tail cowling in the areas (1) and (2) with punch rivets N4.
| Area | Number |
|---|---|
| 1 | total of 12 |
| 2 | total of 9 |
CONSUMABLE DESCRIPTION
| Punch rivet N4 Ø 3 mm; 4 mm long |
83192457307 |
Installing the EMC screw
- Drill a hole with a diameter of 4.2 mm.
In the case of glued connections, only drill the hole after the adhesive has fully hardened.
- Screw in the EMC screw.CONSUMABLE DESCRIPTION
EMC screw SF Plus M5x15 83190301639 - Seal the EMC screw with the sealant.CONSUMABLE DESCRIPTION
Sealant D1 (seam sealing) 310 ml 83422409985
NOTE:
TECHNICAL INFORMATION
Avoid contact of the escaped adhesive with the support for the bumper cover. Do not use any cleaning agents containing solvents.
Avoid contact of the escaped adhesive with the support for the bumper cover. Do not use any cleaning agents containing solvents.

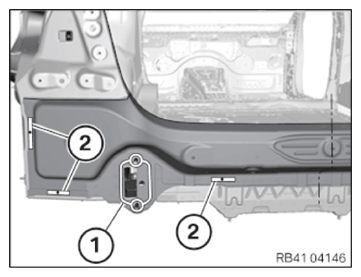

- Press in the tail cowling in area (1) and remove the emerging adhesive.
- Attach the support for bumper cover.
- After the adhesive has hardened, install 3 EMC screws in the areas (2) shown.
CONSUMABLE DESCRIPTION
| screw EMC screw, SF Plus, M5x15 |
83190301639 |
