Prepare New Part
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
- Mark and cut the separating cut on the new part corresponding to the separating cut on the vehicle.

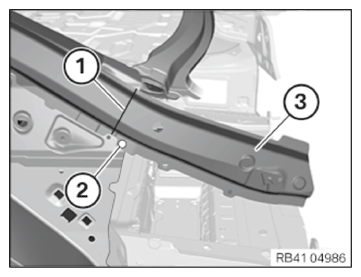

- Adjust roof frame reinforcement new part (3) together with tail panel and side panel.NOTE: TECHNICAL INFORMATION
For additional information see: WELDING IN REINFORCEMENT PLATE (SHEET STEEL) REP-REP-RAGRP41-4105801 - V.5 (M5 2018-2022, M5 Competition 2019-2022, M5 CS 2022) . - Make a reinforcement plate for the separating cut in area (1).
- Prepare the new part in area (2) for joining by welding.
- Fit in the new part tension strap.
- Prepare the new part for joining by welding in these areas (1).
Ensure sufficient distance to the bonded rivet connection (2).
