Remove The Outer Section Of The B-Pillar
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

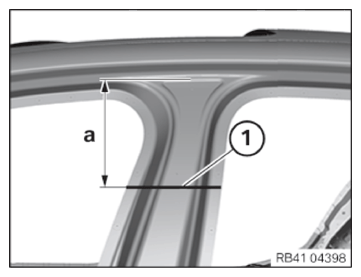

- Mark and cut the separating cut (1) to dimension (a). Thereby disconnect only the outer panel.
Dimension (a) = 210 mm from stamped edge.

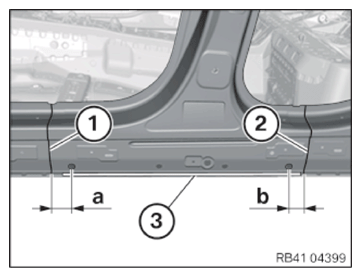

- Mark and cut the separating cuts (1) and (2) according to the specified dimensions.
Thereby disconnect only the outer panel.
Dimension (a) = 60 mm from the center point of the hole Ø 20 mm.
Dimension (b) = 50 mm from the center point of the hole Ø 20 mm.
- Open welded connections in area (3).

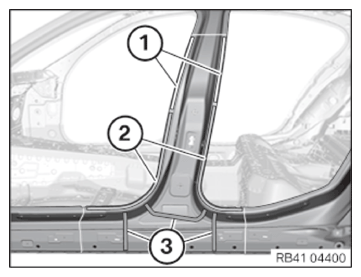

- Release welded connections in areas (1).NOTE: TECHNICAL INFORMATION
For additional information see: OPENING BONDED CONNECTIONS REP-ALG-RAGRP41-4105702 - V.3 (M5 2018-2022, M5 Competition 2019-2022, M5 CS 2022) . - Open spot-welded adhesive joints in areas (2).
- Release the outer section of the B-pillar from the cavity sealing (3) and remove.
