Remove B-Pillar With Reinforcement
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

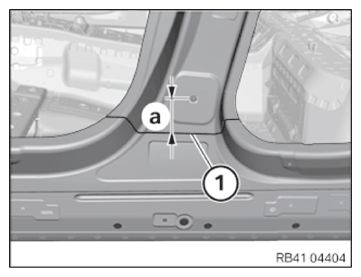

- Make the separating cut (1) to dimension.
Dimension (a) = 75 mm from the center of the hinge mount.
- Cut through B-pillar completely. Do not damage the inner side member in doing so.
- Mark and perform the separating cuts in accordance with the specified dimensions.
Thereby disconnect only the outer panel.
Dimension (a) = 40 mm from the center of the mounting.

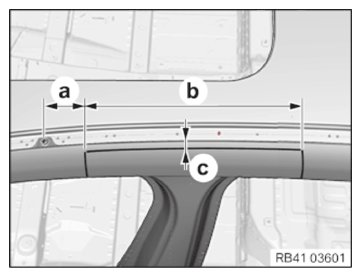

Dimension (b) = 400 mm from dimension a.
Dimension (c) = 15 mm from the component edge of the roof frame.

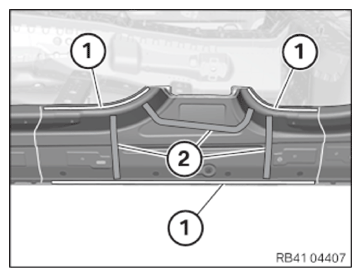

- Start the separating cut (1) as shown and completely cut through the B-pillar.
- Open the welded connections in the areas (2) and remove the section (3).

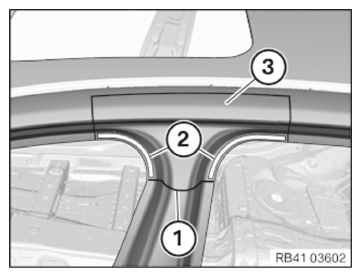

- Mark the separating cuts (1) according to the schematic diagram and carry out the cuts.

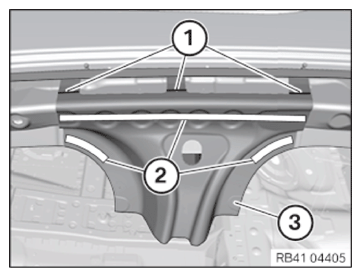

- Release welded connections in areas (2).
- Detach the section of the B-pillar reinforcement (3).

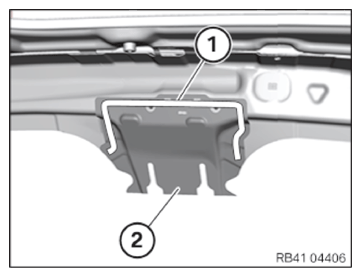

- Open the welded connections in area (1) and remove the B-pillar section (2).

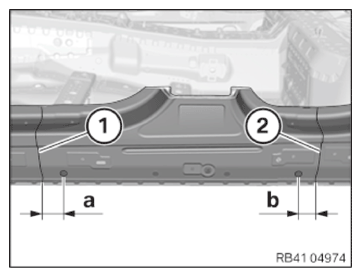

- Mark and cut the separating cuts (1) and (2) according to the specified dimensions.
Thereby disconnect only the outer panel.
Dimension (a) = 60 mm from the center point of the hole Ø 20 mm.
Dimension (b) = 50 mm from the center point of the hole Ø 20 mm.
- Release welded connections in areas (1).
- Undo and remove the door sill partial section from the cavity sealings (2).
- Remove the cavity sealing (1).

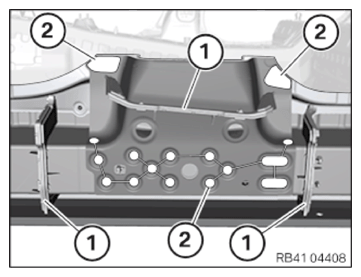

- Release welded connections in areas (2).
- Remove the B-pillar reinforcement partial section.

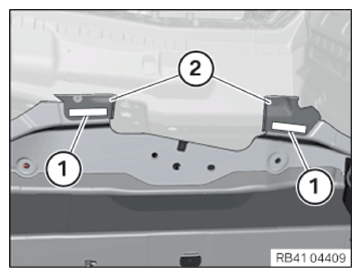

- Release welded connections in areas (1).
- Remove the partial sections (2).
