Preparing New Part
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
- Carry out the severance cuts on the new parts according to the severance cut on the vehicle.
- Remove unnecessary components from new part.

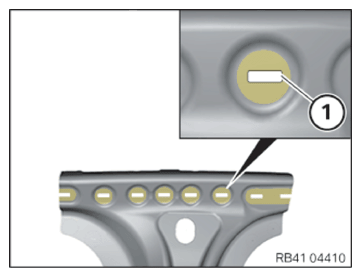

- Prepare the new reinforcement part for the B-pillar in the upper area for joining by plug-welding. To do so, make (1) 6 x 15 mm elongated holes with a cut-off grinder.

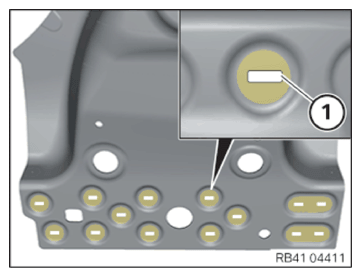

- Prepare the new reinforcement part for the B-pillar in the lower area for joining by plug-welding. To do so, make 6 x 15 mm elongated holes (1) with a cut-off grinder.
- Adjust the new B-pillar inner section and B-pillar reinforcement using an alignment bracket or universal fixture and secure in place.NOTE: TECHNICAL INFORMATION

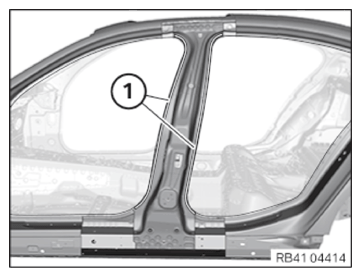

For additional information see: WELDING IN REINFORCEMENT PLATE (SHEET STEEL) REP-REP-RAGRP41-4105801 - V.5 (M5 2018-2022, M5 Competition 2019-2022, M5 CS 2022) . - Adjust the reinforcement plates (1) at the separating cuts (join from above).

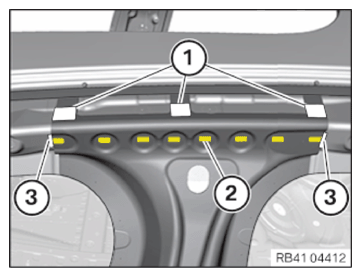

- Prepare the body in the areas (2) for plug-welding.

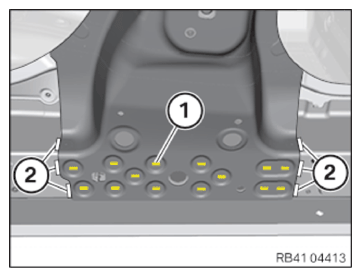

- In the lower area of the reinforcement for the B-pillar, prepare the body for plug-welding (1).
- At the areas (2), prepare 1 x 15 mm long MAG weld seams for each.

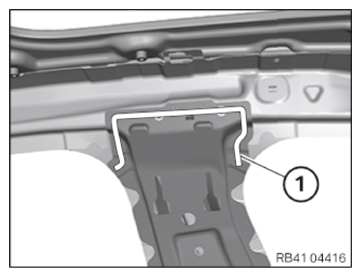

- Prepare new parts in the areas (1) for joining by welding.
- Prepare new parts in the areas (1) for joining by welding.

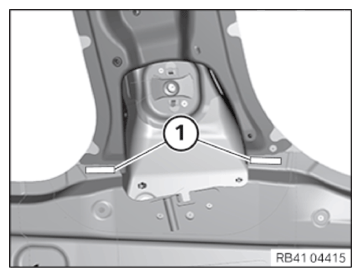

- Prepare new part in the area (1) for joining by welding.

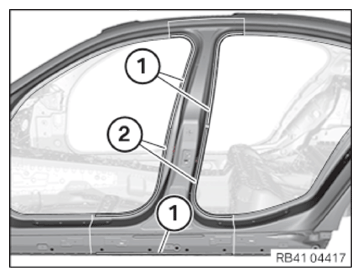

- Mark out and make separating cuts on the new B-pillar outer skin in accordance with the separating cuts on the vehicle.NOTE: TECHNICAL INFORMATION
For additional information see: WELDING IN REINFORCEMENT PLATE (SHEET STEEL) REP-REP-RAGRP41-4105801 - V.5 (M5 2018-2022, M5 Competition 2019-2022, M5 CS 2022) . - For separating cuts, make reinforcement plates.
- Adjust the new part and prepare it for joining by welding in the areas (1) and (2).NOTE: TECHNICAL INFORMATION
For additional information see:SPOT-WELD BONDING STEEL COMPONENTS REP-ALG-RAGRP41-4105701 - V.3 (M5 2018-2022, M5 Competition 2019-2022, M5 CS 2022) . - In the areas (2), based on the spot-welded adhesive joints of the series, prepare double the number of repair spot-welds.
