New Parts Required

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

Precondition

Vehicle is fixed on straightening bench.

NOTE: TECHNICAL INFORMATION

Observe the procedure for repair stage 3.
For additional information see: REPAIR TECHNIQUES, REPAIR STAGE 3 REP-ALG-RAGRP41-410000A_REPSTUFE_3 - V.5 (M5 2018-2022, M5 Competition 2019-2022, M5 CS 2022) .

Preliminary work

Follow-up work

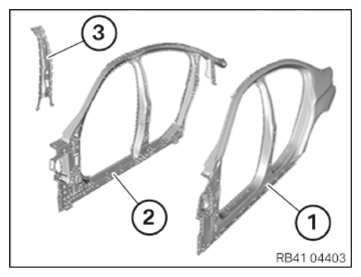

Prepare the following new parts (see Electronic Parts Catalog [EPC]):
Side frame, outer part (1)

Side frame, center (2)

B-pillar, inner section (3)

Shaped part, front door sill

Shaped part, rear sill

B-pillar shaped part
