Install B-Pillar With Reinforcement
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
TECHNICAL INFORMATION
Use only approved spot welder for repair.
For additional information see: WORKSHOP EQUIPMENT (BMW AND MINI VEHICLES) REP-ALG-RAGRP41-4101300 - V.12 (M5 2018-2022, M5 Competition 2019-2022, M5 CS 2022) .
Use only approved spot welder for repair.
For additional information see: WORKSHOP EQUIPMENT (BMW AND MINI VEHICLES) REP-ALG-RAGRP41-4101300 - V.12 (M5 2018-2022, M5 Competition 2019-2022, M5 CS 2022) .
- Install the new B-pillar inner section and B-pillar reinforcement using an alignment bracket or universal fixture and secure in place.
- Weld the new parts in the areas (1) and (2) in accordance with the new part preparation process.
- Weld the new parts in the areas (1) and (2) in accordance with the new part preparation process.
- Weld the new parts in the areas (1) in accordance with the new part preparation process.
- Weld the new parts in the areas (1) in accordance with the new part preparation process.
- Weld the new parts in the areas (1) in accordance with the new part preparation process.NOTE: TECHNICAL INFORMATION
For additional information see: INSTALLING CAVITY SEALING (NOT EXPANDED) REP-REP-RAGRP41-4107102 - V.4 (M5 2018-2022, M5 Competition 2019-2022, M5 CS 2022) . - Apply sealant to the new cavity sealings (1). Fit cavity sealings.

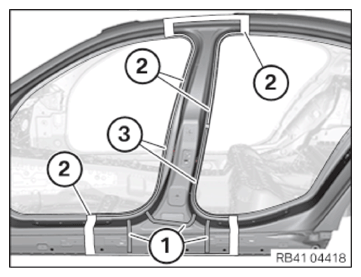

- Install the new B-pillar outer skin part and reinforcement plates and weld them in the areas (2) and (3) in accordance with the new part preparation process.
