Remove A-Pillar Reinforcement

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

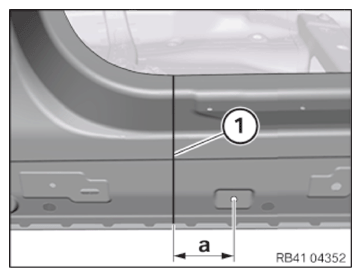

Mark and carry out the separating cut (1) as per dimension a. Thereby disconnect only the outer panel. Dimension a = 85 mm.

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: TECHNICAL INFORMATION
For additional information see: OPENING BONDED CONNECTIONS REP-ALG-RAGRP41-4105702 - V.3 (M5 2018-2022, M5 Competition 2019-2022, M5 CS 2022) .

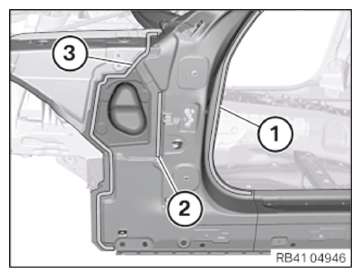

Open the spot-welded adhesive joints in areas (1) to (3).

Courtesy of BMW OF NORTH AMERICA, INC.

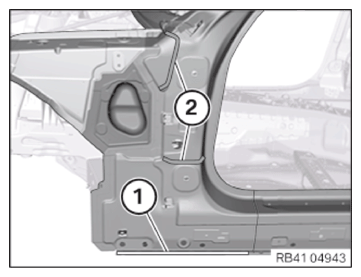

Open welded connections in area (1).
Detach the outer section of the A-pillar from the cavity sealings (2).

Courtesy of BMW OF NORTH AMERICA, INC.

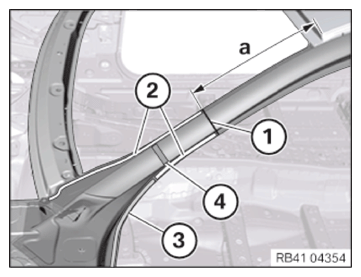

Mark and carry out the separating cut (1) as per dimension a. Thereby disconnect only the outer panel. Dimension a = 340 mm.
Release welded connections in areas (2).
Release the spot-welded adhesive joints in area (3).
Detach the outer section of the A-pillar from the cavity sealing (4) and remove.

Courtesy of BMW OF NORTH AMERICA, INC.

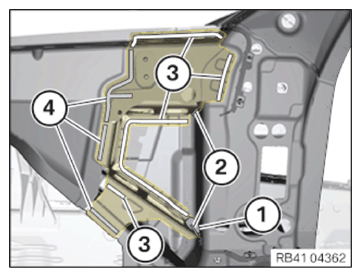

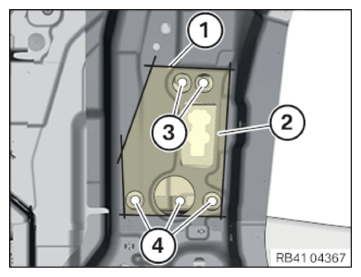

Remove cavity sealing (1).
Mark and cut the separating cuts (2).
Loosen welded connections in areas (3).
Open spot-welded adhesive joints in areas (4).
Remove the bulkhead.

Courtesy of BMW OF NORTH AMERICA, INC.

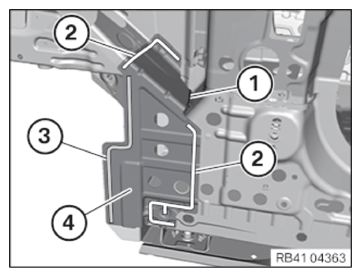

Mark and cut the separating cut (1).
Release welded connections in areas (2).
Release the spot-welded adhesive joints in area (3).
Remove reinforcement (4).

Courtesy of BMW OF NORTH AMERICA, INC.
Mark and carry out the separating cut (1) as per dimension a. Thereby disconnect only the outer panel. Dimension a = 60 mm beneath previous separating cut.
Pay attention to the water drain hose of the sliding/tilting sunroof.
Release the welded connection in areas (2).

Courtesy of BMW OF NORTH AMERICA, INC.
Mark and make the separating cuts (1) as shown.
Pay attention to the water drain hose of the sliding/tilting sunroof.
Remove the cut panel section (2).

Courtesy of BMW OF NORTH AMERICA, INC.

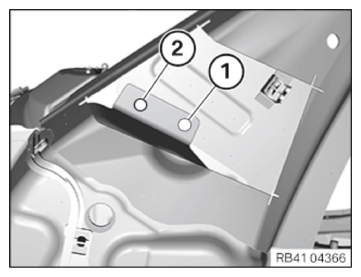

Release the spot-welded adhesive joint (1).
Drill a bore with (2)Ø 10 mm for a spot-weld.
Drill through all 3 panels.

Plug-welding occurs from the inside.

Courtesy of BMW OF NORTH AMERICA, INC.

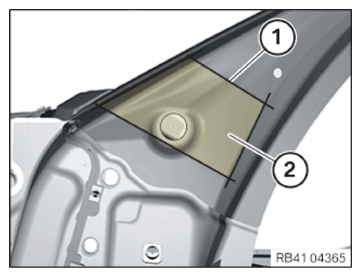

Mark and make separation cuts (1) as shown and remove the sheet metal cutout (2).
Pay attention to the water drain hose of the sliding/tilting sunroof.
Detach the spot-welded adhesive joints (3).
Detach the welded connections (4).

Courtesy of BMW OF NORTH AMERICA, INC.

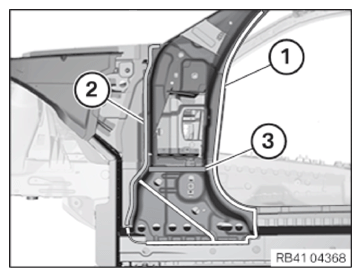

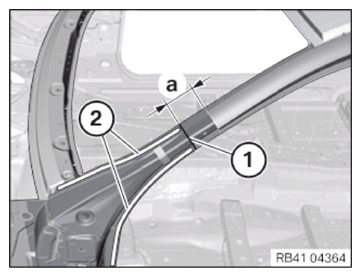

Open welded connections in area (1).
Release the spot-welded adhesive joints in area (2).
Detach the reinforcement of the A-pillar from the cavity sealing (3) and remove.

Courtesy of BMW OF NORTH AMERICA, INC.

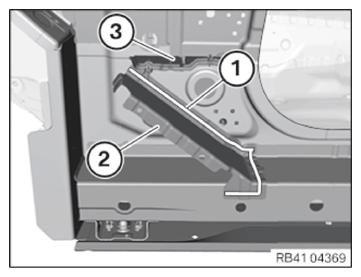

Open the welded connections in area (1) and remove the reinforcement (2).
Remove cavity sealing (3).

Courtesy of BMW OF NORTH AMERICA, INC.
