Removing The Connection Between The Engine Mount And The Side Frame

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.

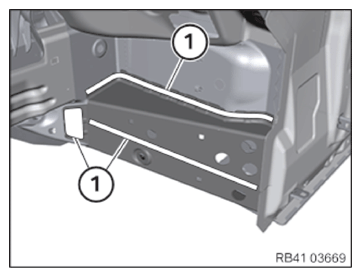

Release welded connections in areas (1). Release some of the welded connections using a belt sander.

Courtesy of BMW OF NORTH AMERICA, INC.
Release welded connections in areas (1).
Mark and make the separating cut (2) as shown. Carry out part of the separating cut using a belt sander.

Courtesy of BMW OF NORTH AMERICA, INC.

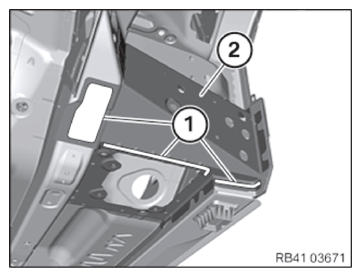

Release welded connections in areas (1) and remove component (2).

Courtesy of BMW OF NORTH AMERICA, INC.

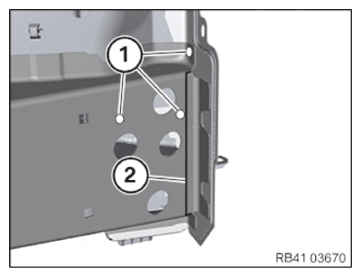

Mark and make the separating cut (1) as shown.
Release welded connections in areas (2).

Courtesy of BMW OF NORTH AMERICA, INC.

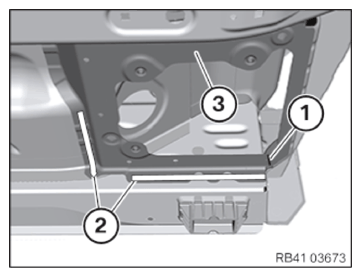

Mark and make the separating cut (1) as shown.
Release welded connections in areas (2) and remove component (3).

Courtesy of BMW OF NORTH AMERICA, INC.

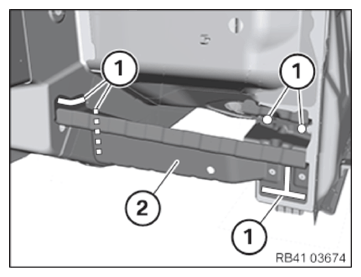

Release welded connections in areas (1) and remove component (2).

Courtesy of BMW OF NORTH AMERICA, INC.
