Supplying The New Parts Required
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M5, 2022 BMW M5, 2021 BMW M5, 2020 BMW M5, and 2019 BMW M5. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
TECHNICAL INFORMATION
- Observe the procedure for repair stage 2.
For additional information see: REPAIR TECHNIQUES, REPAIR STAGE 2 REP-ALG-RAGRP41-410000A_REPSTUFE_2 - V.9 (M5 2018-2022, M5 Competition 2019-2022, M5 CS 2022) .
Preliminary work
Follow-up work
- Procure the following new parts (see Electronic Parts Catalog):

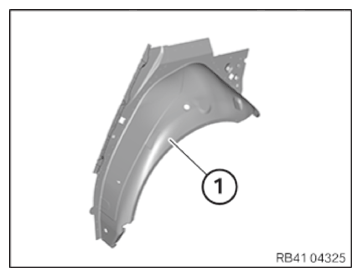

- Outer wheel arch section (1)
- Shaped part entrance/shaped part outer wheel arch
NOTE: TECHNICAL INFORMATION
For additional information see: OVERVIEW OF CONSUMABLES (ELECTRONIC PARTS CATALOG) REP-ALG-RAGRP41-4103211 - V.30 (M5 2018-2022, M5 Competition 2019-2022, M5 CS 2022) . - Have the following consumables ready:
| Material | Quantity |
|---|---|
| Adhesive K5 (50 ml) | 1 |
| Blind rivet N3 | 15 |
| Coarse thread bolt | 5 |
| Cleaning agent R1 | 1 |
| Cleaning agent R2 | 1 |
| Sealing compound D2 | |
| Cavity protection wax remover |
